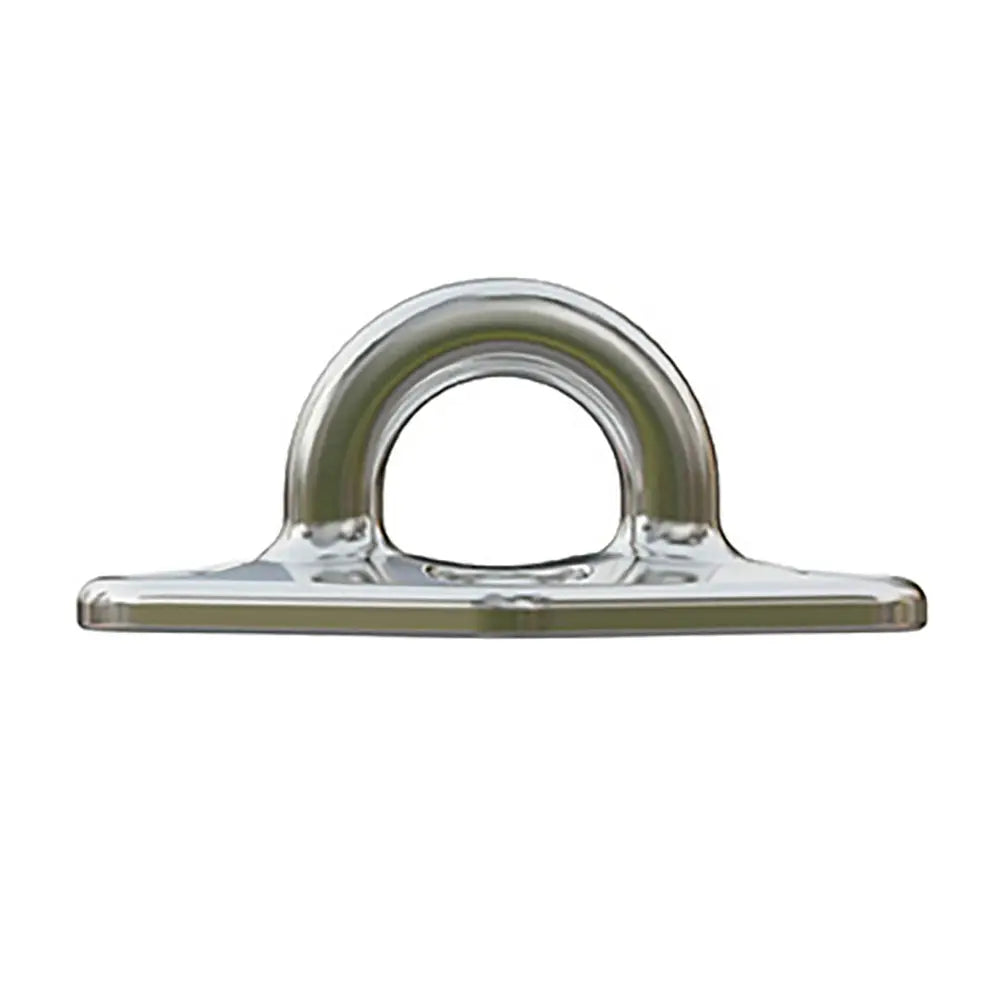

Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw [6644]
Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw [6644]
Low stock! Only 5 left
Regular price
$23.99
Sale price
$23.99
Regular price
$35.33
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want next day delivery? Be quick!
Question about this product?
We're happy to help.
Up to 32% off
Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M5 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 2645.5 / (kg) 1200
- Breaking Load: (lb) 7054.7 / (kg) 3200
- Weight: (lb) 0.13 / (g) 59
- W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
- W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
- W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
- B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
- B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
- B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

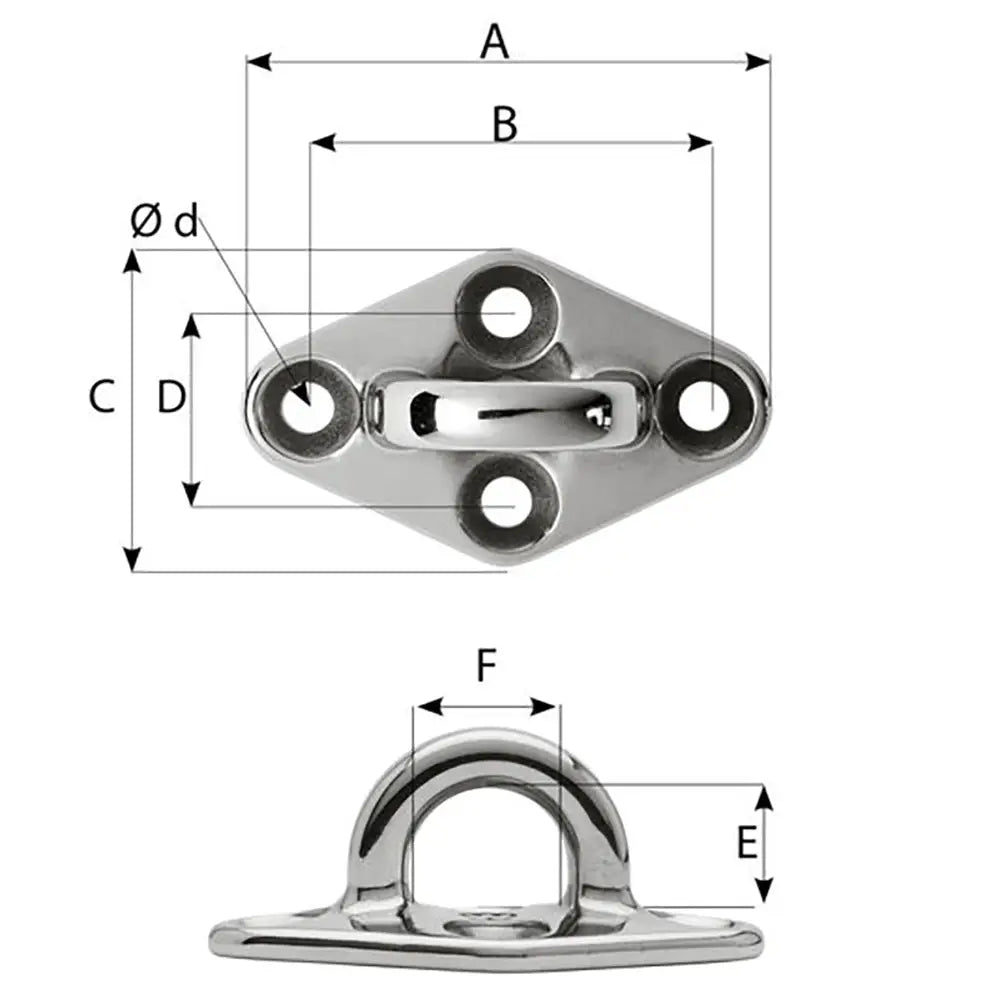

Dimensions:
- A: (inch) 2 23/64" / (mm) 60
- B: (inch) 1 13/16" / (mm) 46
- C: (inch) 1 1/2" / (mm) 38
- D: (inch) 15/16" / (mm) 24
- E: (inch) 37/64" / (mm) 14.5
- F: (inch) 3/4" / (mm) 19
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
