Scanstrut Horizontal Double-Entry Cable Seal - Grey - Multiple Cable Combinations [DS-HD10]

Horizontal Double-Entry Cable Seal - Grey - Multiple Cable Combinations

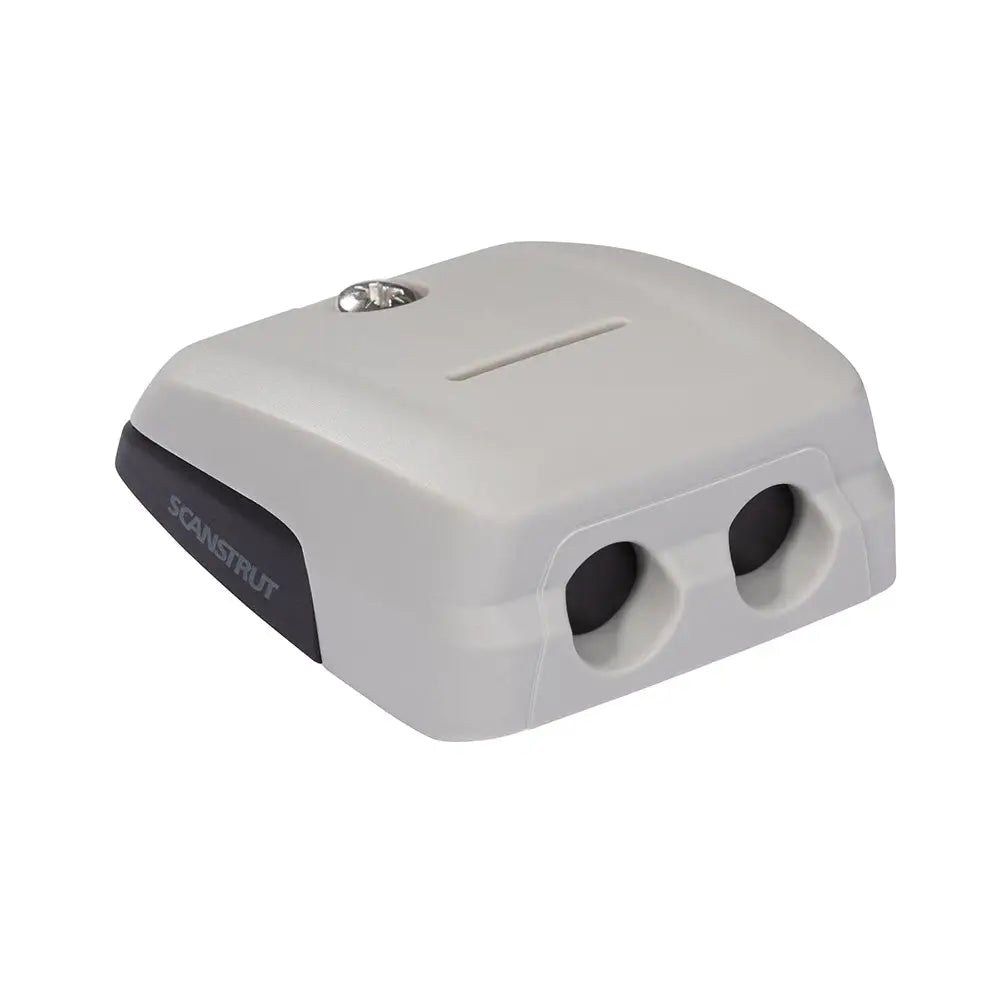

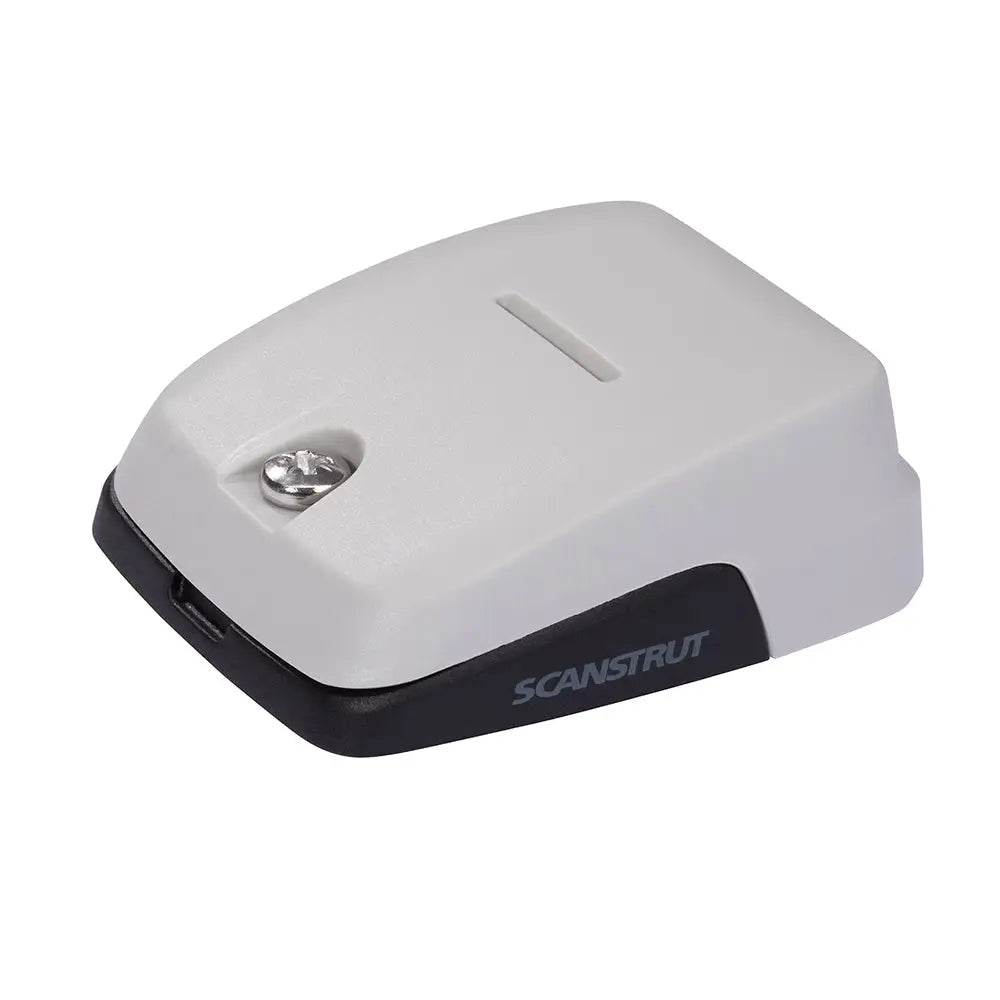

The DS-HD10 double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of cables for rooftop lights and electronics. Scanstrut’s seal helps users achieve a sleek, easy-to-fit, and 100% watertight installation every time.

Features:

• Designed for two cables
• IP68 watertight seal
• Compact footprint - just 66.5mm (2.61 in.) W / 75.1mm (2.95 in.) L / 28.5 mm (1.12 in.) H
• Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP
• Grey high-impact plastic

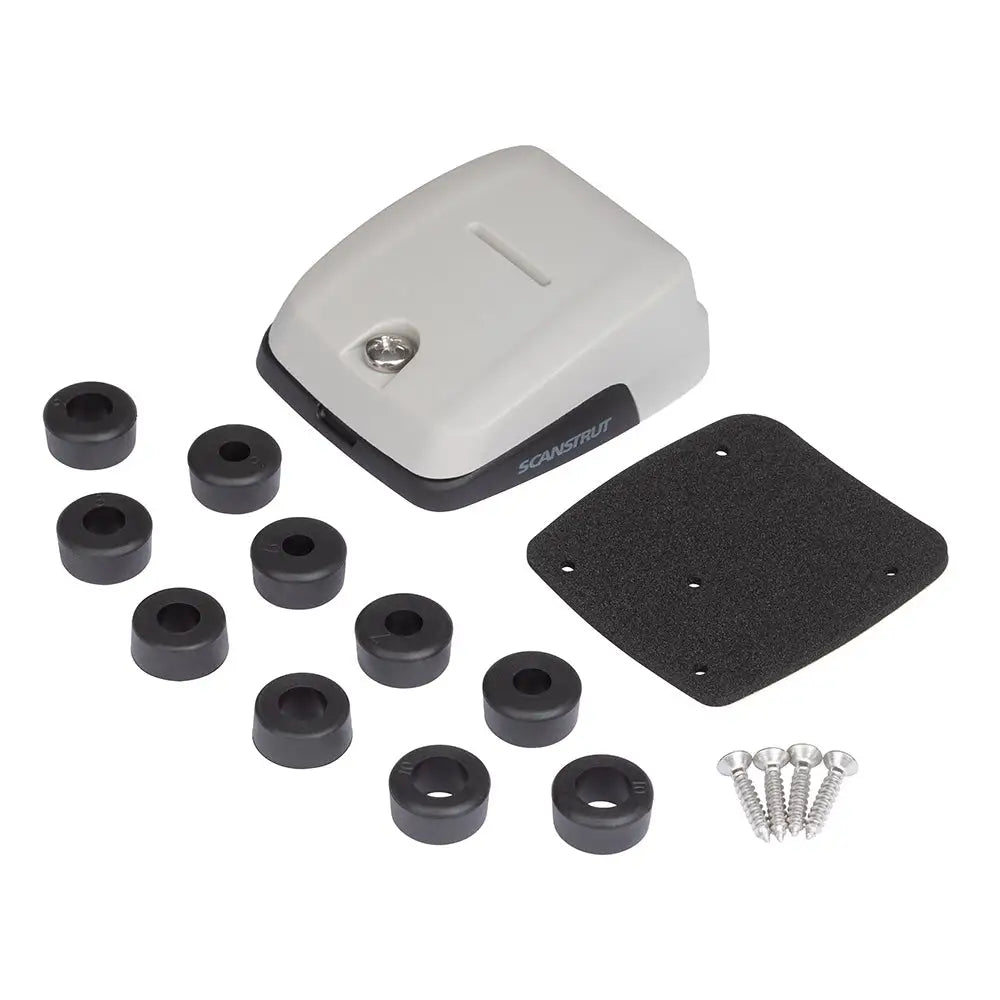

• Includes 316 stainless steel fixings and a waterproof 3M gasket
• The low-profile construction is impact-resistant and provides extra protection from water
• Scanstrut’s materials have been selected to be UV-stable and hard-wearing
• No messy sealant on bungs

Install 2 Cables – Select Any Combination:

• 6mm x 2
• 7mm x 2
• 8mm x 2
• 9mm x 2
• 10mm x 2
• Blank x 2

Specifications:

• Type: Deck Seal
• Box Dimensions: 1"H x 4"W x 9"L WT: 0.35 lbs
• UPC: 5060114799004
