Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw [6645W]

Low stock! Only 3 left
$41.28
$41.28 $48.57
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Up to 15% off

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 6393.4 / (kg) 2900
  • Breaking Load: (lb) 17196 / (kg) 7800
  • Weight: (lb) 0.315 / (g) 143
  • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
  • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
  • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
  • B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
  • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
  • B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

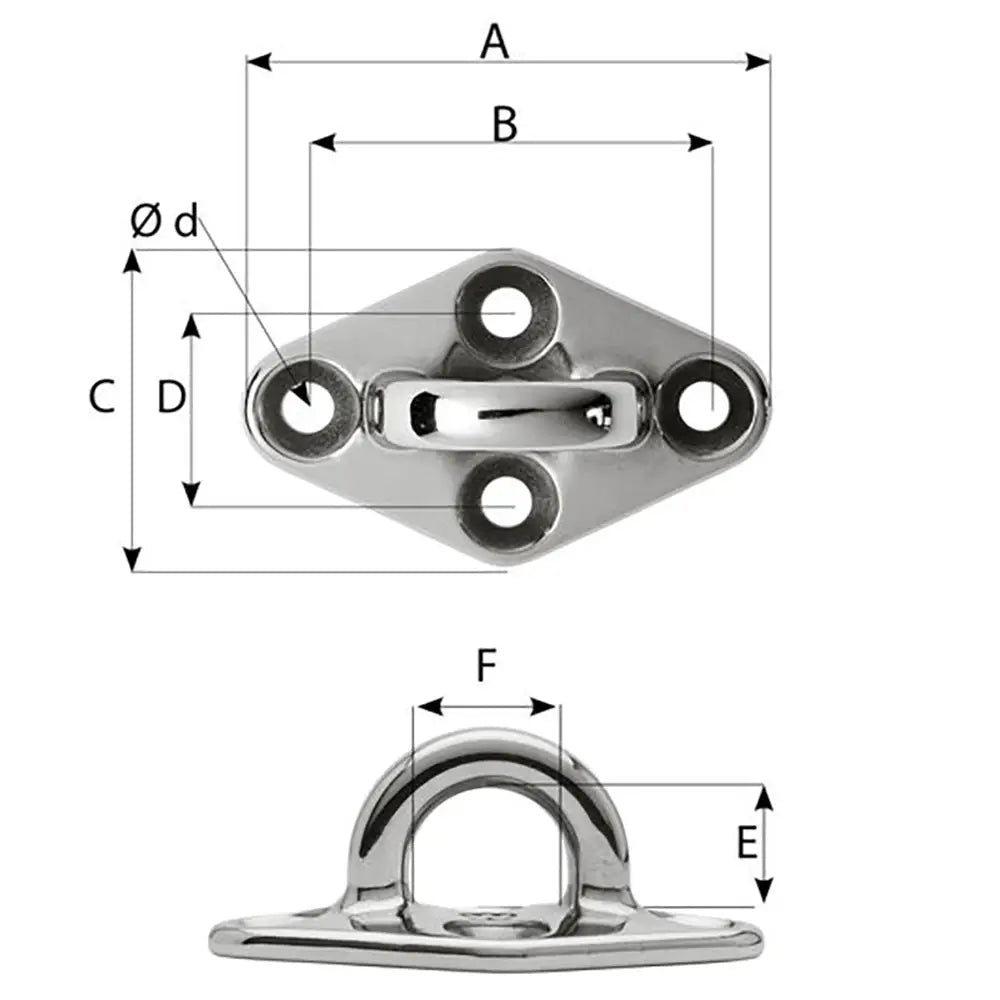

Dimensions:

  • A: (inch) 3 7/64" / (mm) 79
  • B: (inch) 2 23/64" / (mm) 60
  • C: (inch) 1 31/32" / (mm) 50
  • D: (inch) 1 17/64" / (mm) 32
  • E: (inch) 47/64" / (mm) 18.5
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
