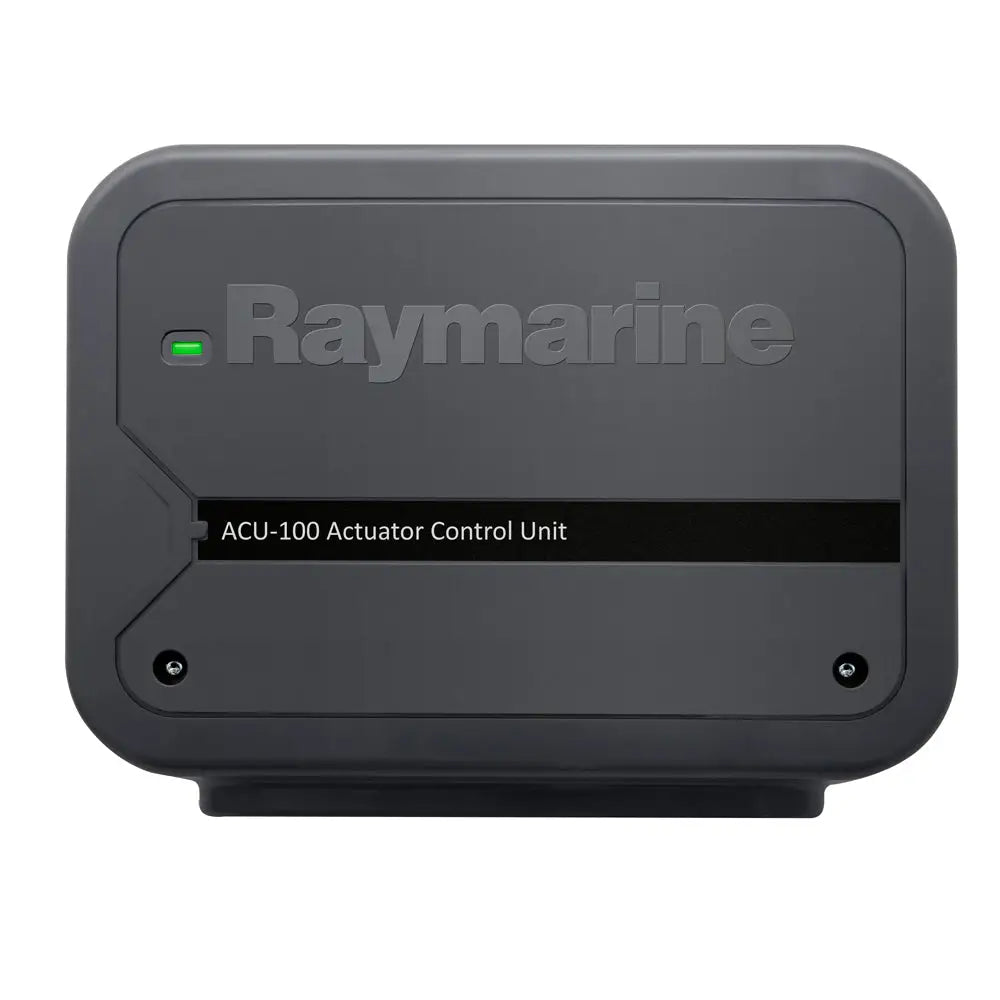

Raymarine ACU-100 Actuator Control Unit [E70098]

Low stock! Only 2 left

$574.99

$574.99 ~~$594.99~~

Shipping calculated at checkout.

Fully secure checkout
Trusted by thousands
Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Question about this product?

We're happy to help.

Up to 3% off

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

Rudder reference sensor
Power
Drive motor
Ground

Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalk^ng Power Supply
No power supply to SeaTalk^ng
SeaTalk^ng LEN (Load Equivalency Number)
1
SeaTalk^ng Power Out
No power supply to SeaTalk^ng
Data Connections
SeaTalk^ng

Installation Environment

Operating Temperature: -20°C to +55°C (-4°F to +131°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Relative Humidity: MAX 93%

Waterproof rating

Connector Panel: IPX2
Drive Electronics: IPX6

Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)

Conformance

Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

Type: Parts
Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs
UPC: 723193768907
