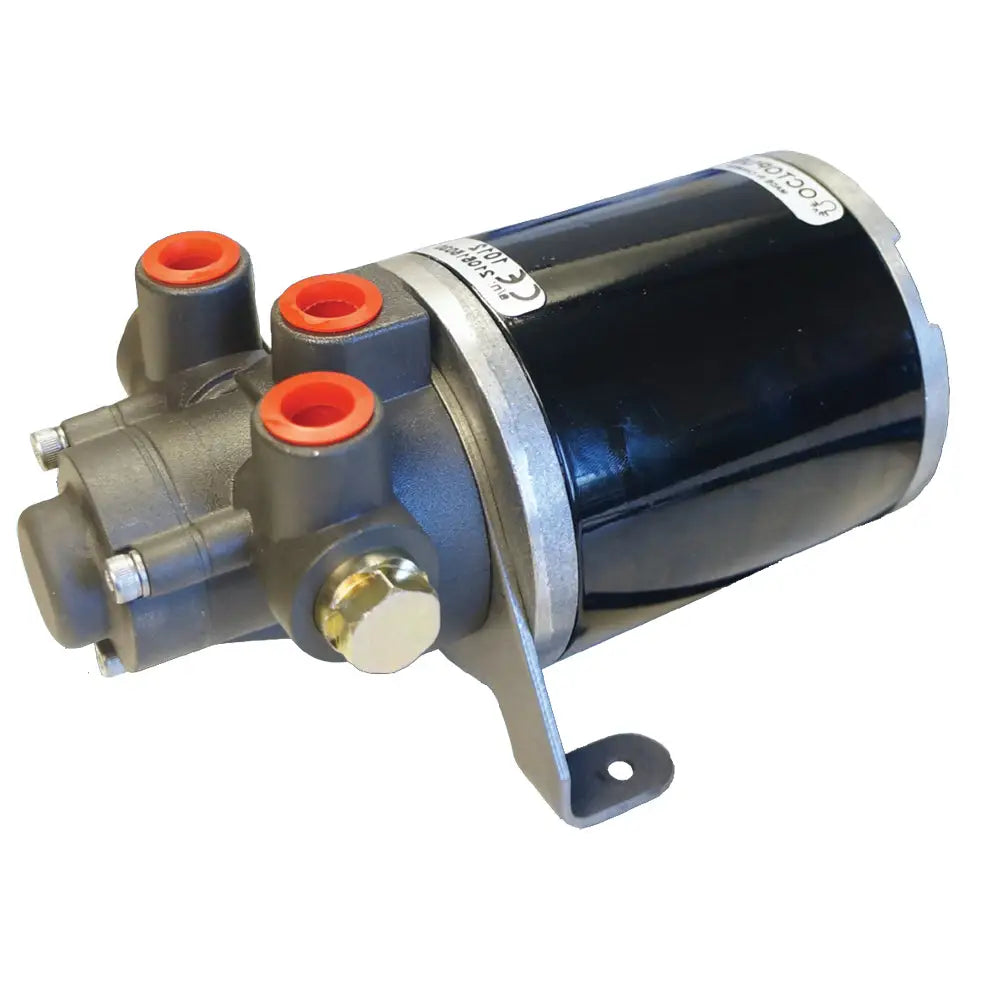

Hydraulic Gear Pump 12V 16-24CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

  • Industry leading efficiency - lower power consumption, particularly
    under demanding conditions requiring higher flow rates equates to a major
    advantage over competing units.
  • Cost saving - the increased efficiency and performance means the pumps
    can be used with smaller autopilot course computers than equivalent drive
    units.
  • The smaller footprint of the compact gear pump increases installation
    flexibility.
  • Lower noise and vibration make the gear pump particularly suitable for
    sailboat installations.
  • Suitable for balanced or unbalanced cylinders.
  • All models available for both 12v and 24v systems.


Specifications:
  • Flow Rate: 1600CC/min
  • Voltage: 12 Volt
  • Cylinder Range: 16-24ci CYLINDER
  • Average Current Draw: 6.6A
  • Operating Temperature: -15 to +75'C (5 - 167'F)
  • Waterproofing: IP55
  • Ignition Protection: ISO 8846 & SAEJ1171
  • EMC Compliance: EN60945-9-2002

Specifications:

  • Type: Pumps/Drives
  • Box Dimensions: 4"H x 4"W x 10"L WT: 5.1 lbs
  • UPC: 628309201616

Quick Guide (pdf)
