• Navico StructureScan 3D Stainless Steel Thru-Hull Transducer - Pair [000-13560-001] - Transducers

Navico StructureScan 3D Stainless Steel Thru-Hull Transducer - Pair [000-13560-001]

Out of stock
$2,329.99
$2,329.99 $2,755.00
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.

Up to 15% offSold out

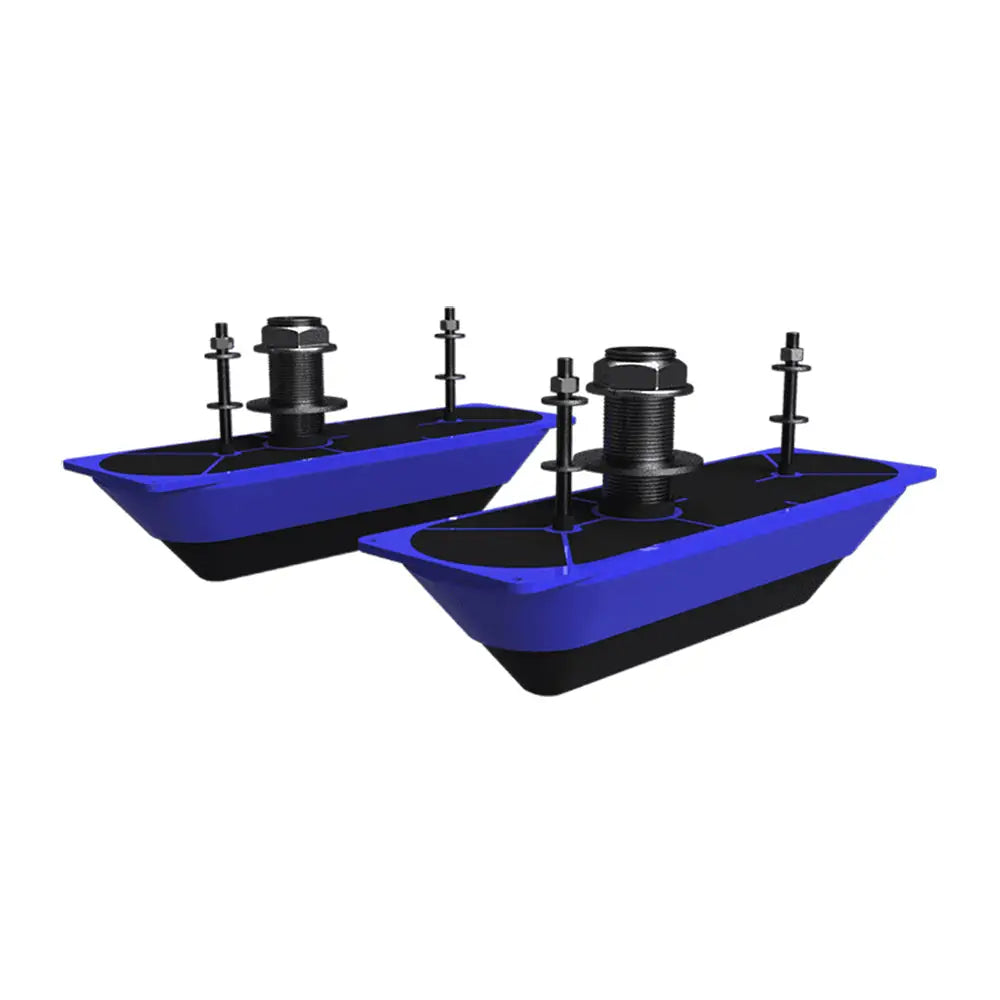

StructureScan 3D® Stainless Steel Thru-Hull Transducer - Pair

The Dual thru-hull StuctureScan 3D® Stainless Steel transducer for the StructureScan 3D® Sonar Imaging product line, providing more range and greater resolution.

  • These transducers are designed for boats with steep or variable deadrise hull angles, for seamless display of SideScan and DownScan and 3D Imaging.
  • As with transom-mount StructureScan 3D® transducer, the Dual thru-hull Stainless Steel version deliver extreme target detail, bottom discrimination, plus bait and game fish separation at depths to 300'(92M) and a wider range of 600'(183M) Left & Right of coverage.
  • These Dual thru-hull Stainless Steel StructureScan 3D® transducers from Airmar® are available only from Navico exclusively for StructureScan 3D® systems. These sturdy, Dual thru-hull Stainless Steel StructureScan 3D® transducers are resistant to the electrical forces in the environment where it will be used.
  • Each feature a low-profile design that minimizes drag; provide exclusive 3-channel beam, port and starboard SideScan, DownScan Imaging™ and 3D Imaging technology; an optional high-performance fairing is avaliable (000-13581-001) give you greater StructureScan performance at speed; and feature a 30'(9M) transducer cable.


**Note if you require a longer cable you will need 2 each 000-12752-001 transducer extension cable**

Specifications:

  • Pins: 9
  • Mounting Style: Thru-Hull
  • Imaging: Down/Side
  • Chirp: No
  • Cable Length (Feet): 25'
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 12"H x 13"W x 16"L WT: 15.5 lbs
  • UPC: 9420024157718
