• Maretron DCR100-01 Direct Current Relay Module [DCR100-01] - NMEA Cables & Sensors

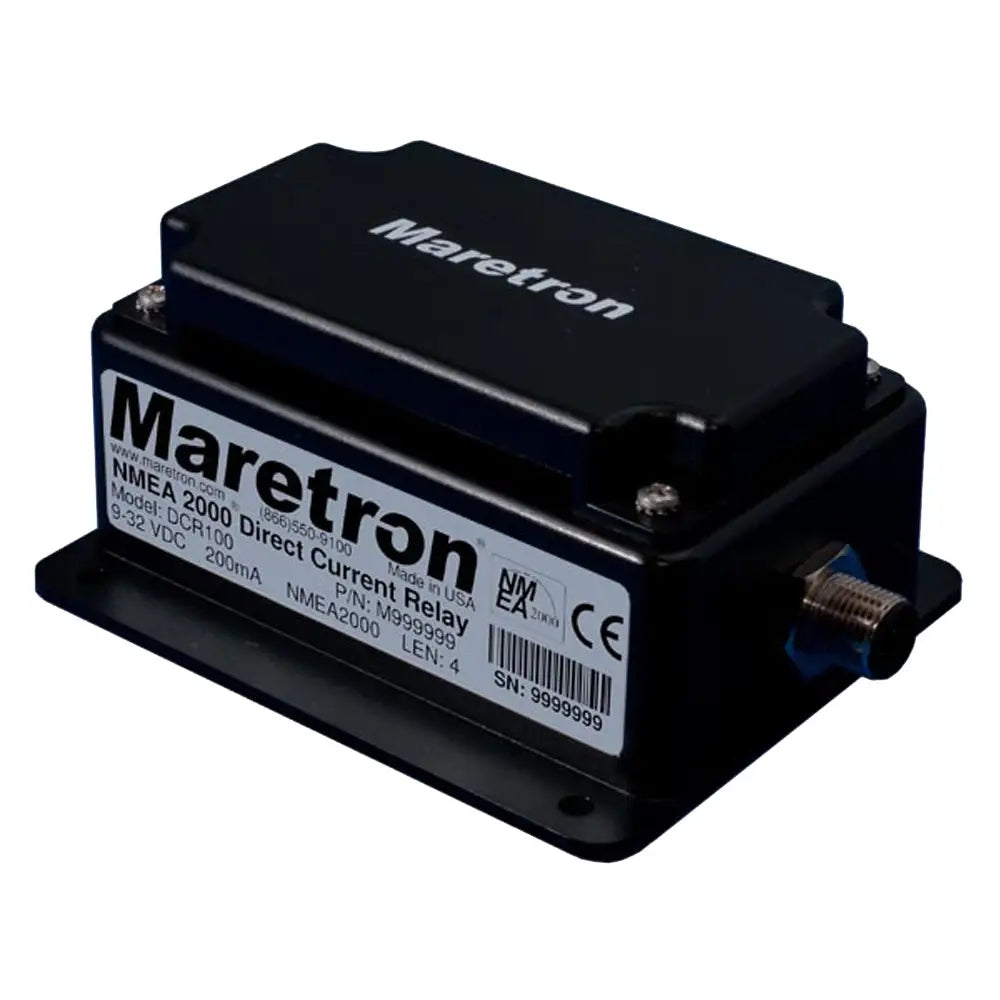

Maretron DCR100-01 Direct Current Relay Module [DCR100-01]

Maretron DCR100-01 Direct Current Relay Module [DCR100-01]

Out of stock
$382.99
$382.99 $395.00
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Sorry, it's out of stock.

But we can let you know when it's back in.

Question about this product?

We're happy to help.
Up to 3% offSold out

Maretron's DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10amps. The DCR100 connects directly to an NMEA 2000 network, so you can turn on and off the relays from any device onboard or remotely running Maretron's N2KViewr software. The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays.

An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current.

Features

  • Six Relays for On / Off Control Over NMEA 2000 Network
  • Each Relay Capable of Carrying Up to 10 amps
  • Individual Relay Electrical Current Monitoring
  • Automatic Relay Over Current Shutdown (Shuts Down at 12 amps)
  • Automatic Relay Thermal Shutdown (Over Temperature Protection)

    Applications

  • Remote Control of Navigation Lights
  • Remote Control of Boarding Lights
  • Burnt Out Bulb Alerts

    WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


    Quick Guide (pdf)
    Owner's Manual (pdf)
