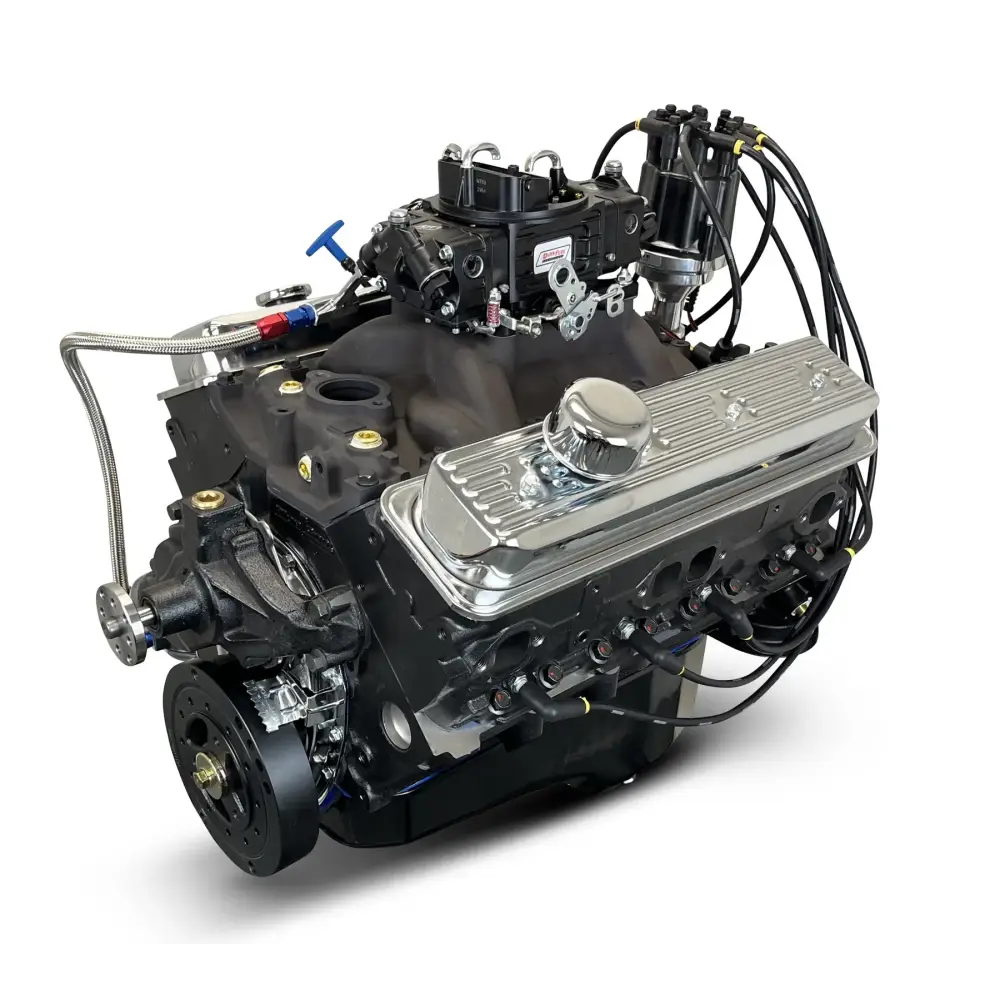

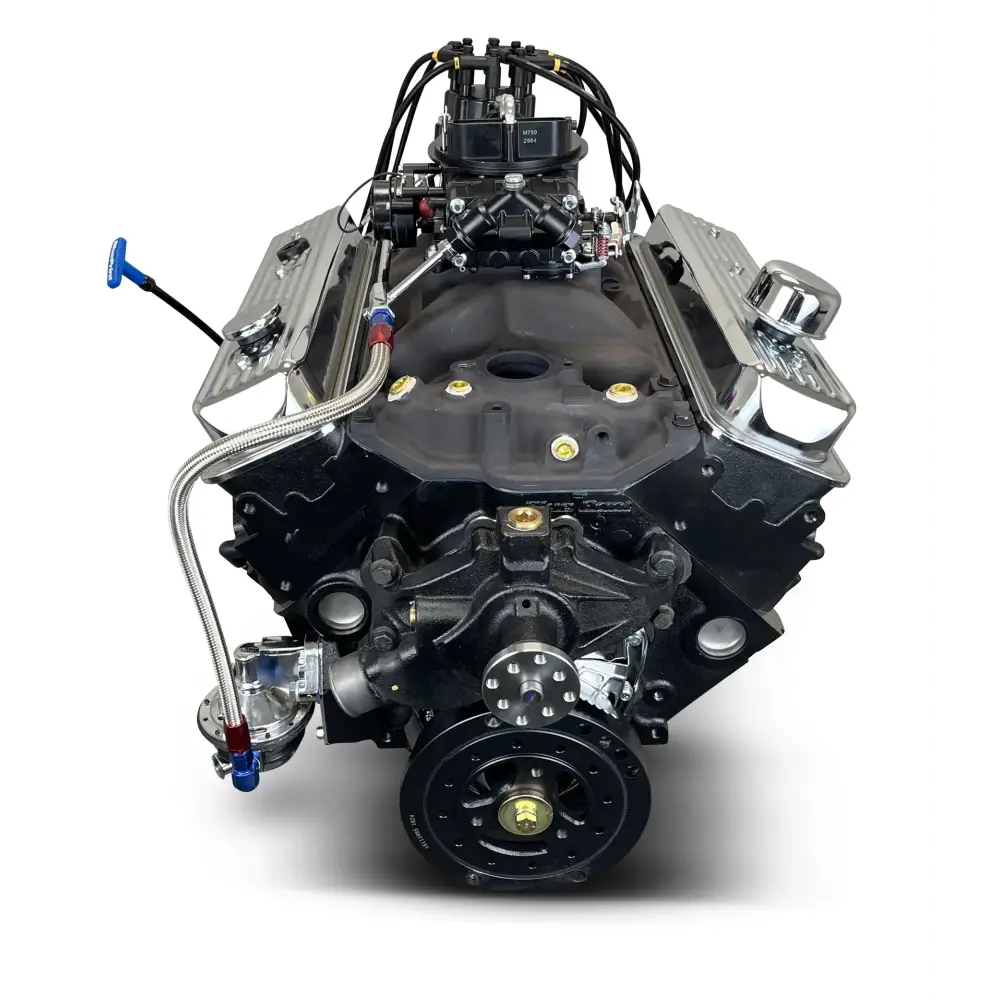

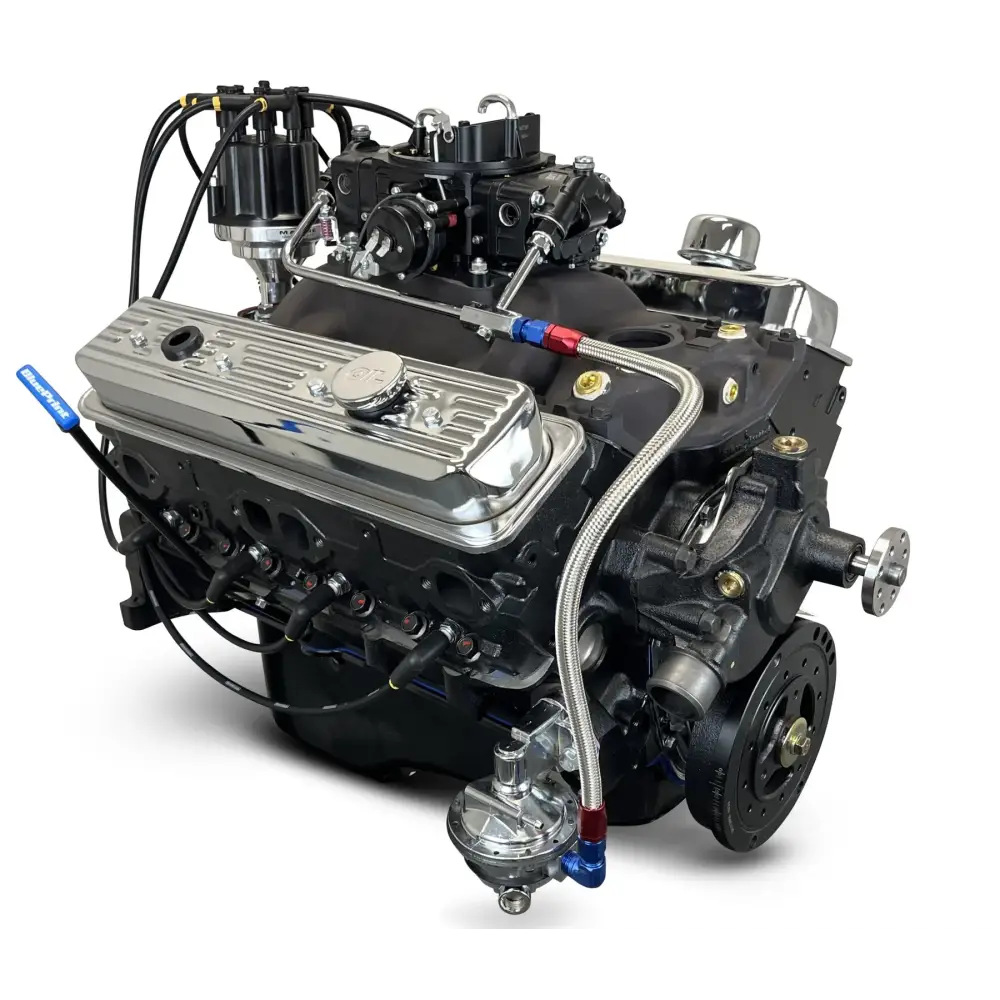

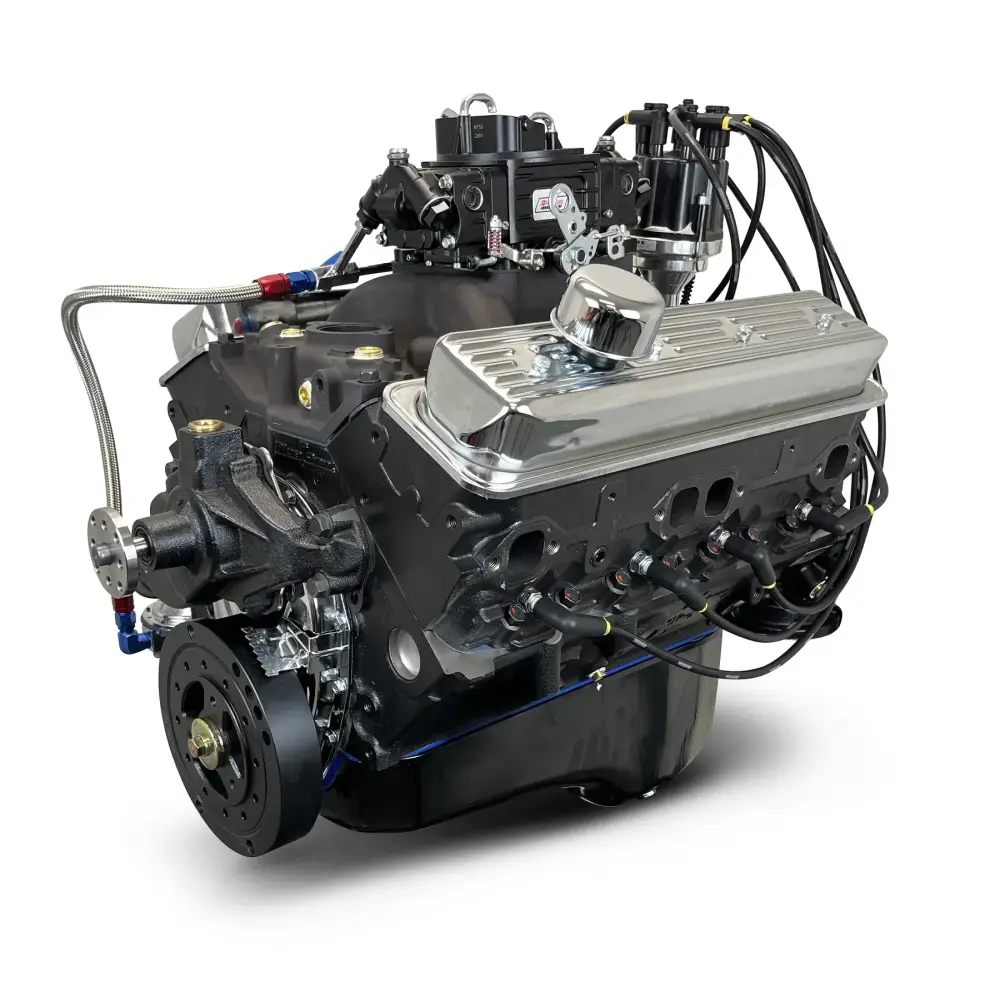

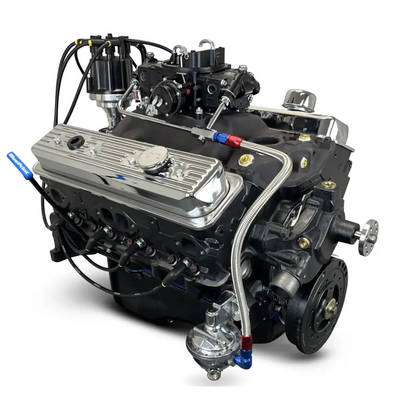

GM Marine Small Block Compatible 383 c.i. Engine - 405 Horsepower - Base Dressed - Carbureted
GM Marine Small Block Compatible 383 c.i. Engine - 405 Horsepower - Base Dressed - Carbureted
Regular price
$8,099.00
Sale price
$8,099.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want next day delivery? Be quick!
Question about this product?
We're happy to help.
Horsepower & Torque: 405 Horsepower / 450 ft. lbs. Torque
Cylinder Heads: Cast Iron Vortec
Compression Ratio: 9.5:1
Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050 - 114° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.750" Stroke and 5.700" Rods
Description:
- Horsepower & Torque: 405 Horsepower / 450 FT LBS
- Compression Ratio: 9.5:1
- Cast Iron Heads
- Hydraulic Roller Cam
- Cast Crankshaft
- Hypereutectic Pistons
Block:
-
BluePrint Engines High Strength Cast Iron Block
- Square and Parallel Decked
- Align Honed Main Bearing Bore
- Cylinders Honed on Computer -Controlled Machine to Within .0002Straightness and Roundness
- Cylinders are Sonic Tested for Thickness
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick Drilled and Tapped for Clutch Linkage
Rotating Assembly:
- Cast Crankshaft
- 3.750" Stroke
- OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- External Front/ External Rear Engine Balance
Cylinder Heads:
- Vortec Cast Iron Cylinder Heads
- 1.94 Intake / 1.50 Exhaust Valves
- Hardened Push Rods
- Long Slot Rockers with Positive Lock Adjusting Nuts
Cam Specs:
- Cam Type: Hydraulic Roller
- .495 Intake / .502 Exhaust Lift
- 220 Intake / 224 Exhaust Duration
- @.050-114 Degree Lobe Separation
Also Includes:
- Marine Intake Manifold
- Valve Covers
- Marine Carburetor (Brand will vary due to supply)
- Distributor
- Oil Pan
Notes:
- This engine is designed for CARBURETED use only. It is NOT for use in any factory fuel injected applications.
- Replaces Standard Rotation engines only. Not available as reverse rotation.
- BluePrint Engines recommends the use of a flame arrestor in marine applications and advises checking local laws to ensure compliance with the United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!

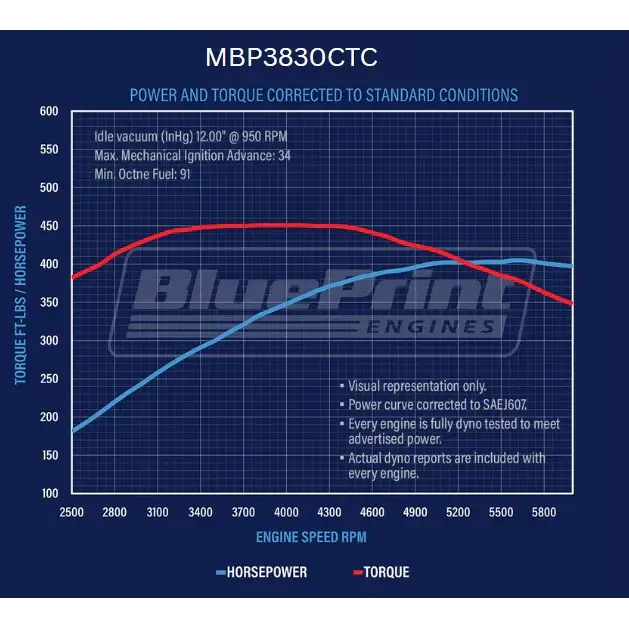

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
This engine will be dyno tested before it ships to you at no additional charge (others charge $500)!
