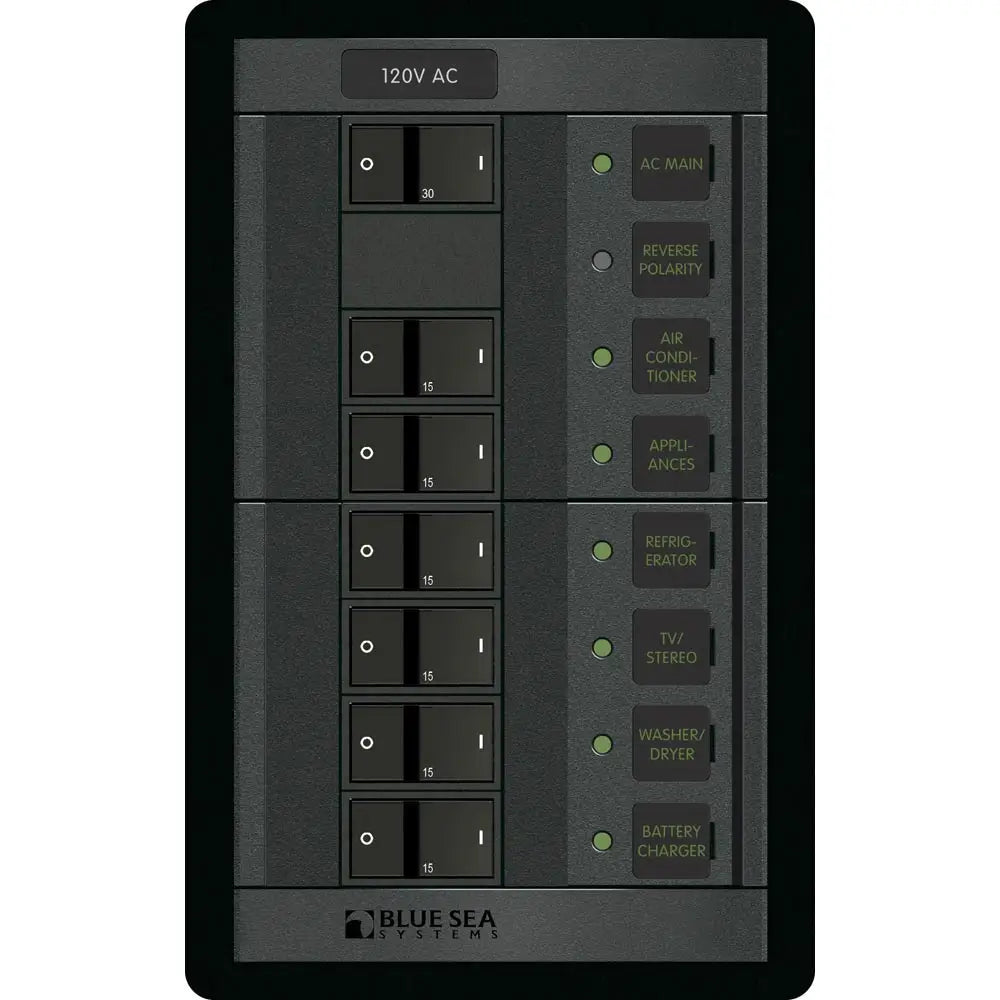

Blue Sea 1202 120V AC Main + 6 Positions - Vertical [1202]

120 Volt AC Main + 6 Position - Vertical

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 6

• Nominal Voltage: 120V AC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.70lb (1.22kg)

Includes:
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 6"H x 6"W x 12"L WT: 2.6 lbs
• UPC: 632085012021

Quick Guide (pdf)
Owner's Manual (pdf)
