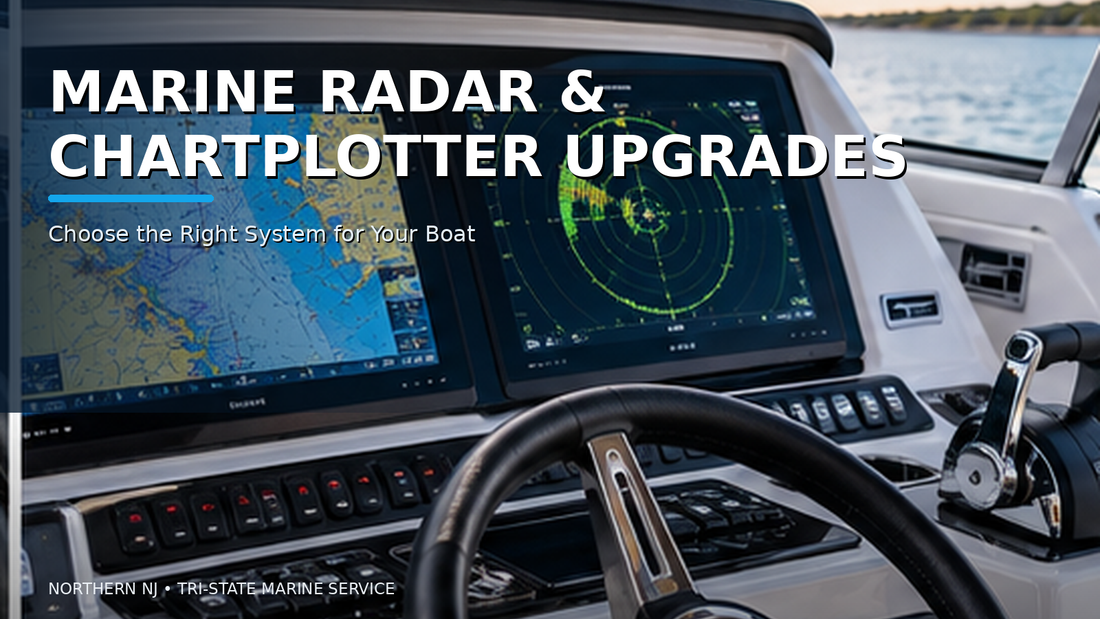

Marine Radar & Chartplotter Upgrades: How to Choose the Right System for Your Boat

A modern marine radar and chartplotter upgrade can improve navigation, situational awareness and reliability—but the best system is not simply the largest display that fits in the dash. A successful electronics refit starts with the vessel, the way it is used and the equipment that must communicate with the new helm.

Bergen Performance Marine installs and integrates marine electronics for recreational, performance and public-safety vessels throughout New Jersey and the New York metro area. The same planning principles apply whether you are replacing one aging multifunction display or rebuilding an entire helm.

Start With the Way You Use the Boat

The right electronics package depends heavily on operating conditions. A lake boat, offshore fishing boat and Hudson River patrol vessel have different priorities.

Consider:

• Typical operating area and depth
• Day versus nighttime operation
• Need for radar in fog or reduced visibility
• Fishing and sonar requirements
• Engine-data integration
• AIS and VHF integration
• Autopilot requirements
• Thermal or low-light camera integration
• Available helm space and viewing distance

Choosing Chartplotter Screen Size

A larger multifunction display can show more chart, radar and sonar information at once, but physical fit is only part of the decision. Sight lines, glare, mounting angle, dash structure and access behind the helm all matter.

Before ordering equipment, the dash should be measured carefully. On older boats, a custom dash panel can often create a cleaner installation than adapting a modern display to multiple old cutouts.

Radar Dome vs Open Array

Radar selection depends on space, power, range expectations and target-separation needs. Compact radomes are common on center consoles and cruisers where size and windage matter. Open-array systems are typically used when greater performance or specific long-range capabilities are desired.

Mounting height and obstruction are important. A powerful radar installed behind metal structures or mounted where the beam is blocked will not perform as intended.

Do You Need NMEA 2000?

Most modern marine electronics ecosystems rely heavily on NMEA 2000 for sharing engine data, heading, GPS, fuel information, AIS and other sensor data. A proper network requires a backbone, correct termination, appropriate power injection and sound connections.

If your current electronics intermittently drop devices, lose GPS or display network alarms, see our NMEA 2000 Troubleshooting Guide.

Integrating Radar, AIS, VHF and Autopilot

One of the major advantages of a well-designed multifunction display system is integration. Depending on equipment compatibility, the chartplotter can display radar overlays, AIS targets, engine data, depth, heading and autopilot information.

Compatibility should be verified before purchasing. A device having an NMEA 2000 connector does not automatically guarantee that every desired function will integrate exactly as expected.

Transducers Matter as Much as the Display

A premium chartplotter cannot create sonar performance that the installed transducer does not support. Frequency, power, mounting style, hull material and fishing depth should all be considered.

During an upgrade, existing transducers may sometimes be reusable through compatible interfaces, but model and connector compatibility should be verified rather than assumed.

Garmin, Simrad or Raymarine?

All three manufacturers offer capable systems. The best choice often depends on the equipment already installed and the features most important to the owner.

• Garmin: Strong integrated ecosystem with chartplotters, radar, sonar, autopilot, cameras and communications products.
• Simrad: Popular on performance, offshore and larger recreational vessels, with strong navigation and radar integration.
• Raymarine: Broad navigation, radar, autopilot and thermal-camera integration options.

Rather than selecting a brand from a spec sheet alone, map the entire system first.

Power and Wiring Are Part of the Electronics Upgrade

New displays and radar do not fix old power problems. Voltage drop, undersized conductors, corroded connections and overloaded accessory circuits can cause rebooting, communication faults and intermittent operation.

A professional refit should evaluate power distribution, grounding, network architecture, circuit protection and cable routing. For broader electrical symptoms, see Why Does My Boat Battery Keep Dying?

Thermal Cameras and Night Operation

Boaters who regularly operate at night may benefit from thermal imaging in addition to radar. Radar and thermal imaging solve different problems and work best as complementary tools. Read our Marine Night Vision & Thermal Camera Guide for more detail.

Marine Electronics Installation in New Jersey & New York

Bergen Performance Marine sells, installs and integrates Garmin, Simrad, Raymarine, FLIR and related marine electronics. Services include chartplotters, radar, NMEA 2000 networking, AIS, VHF, transducers, audio integration, custom dash work and troubleshooting.

Before buying a pile of components, build the system as one package. Proper planning reduces compatibility surprises, unnecessary adapters and expensive rework.
