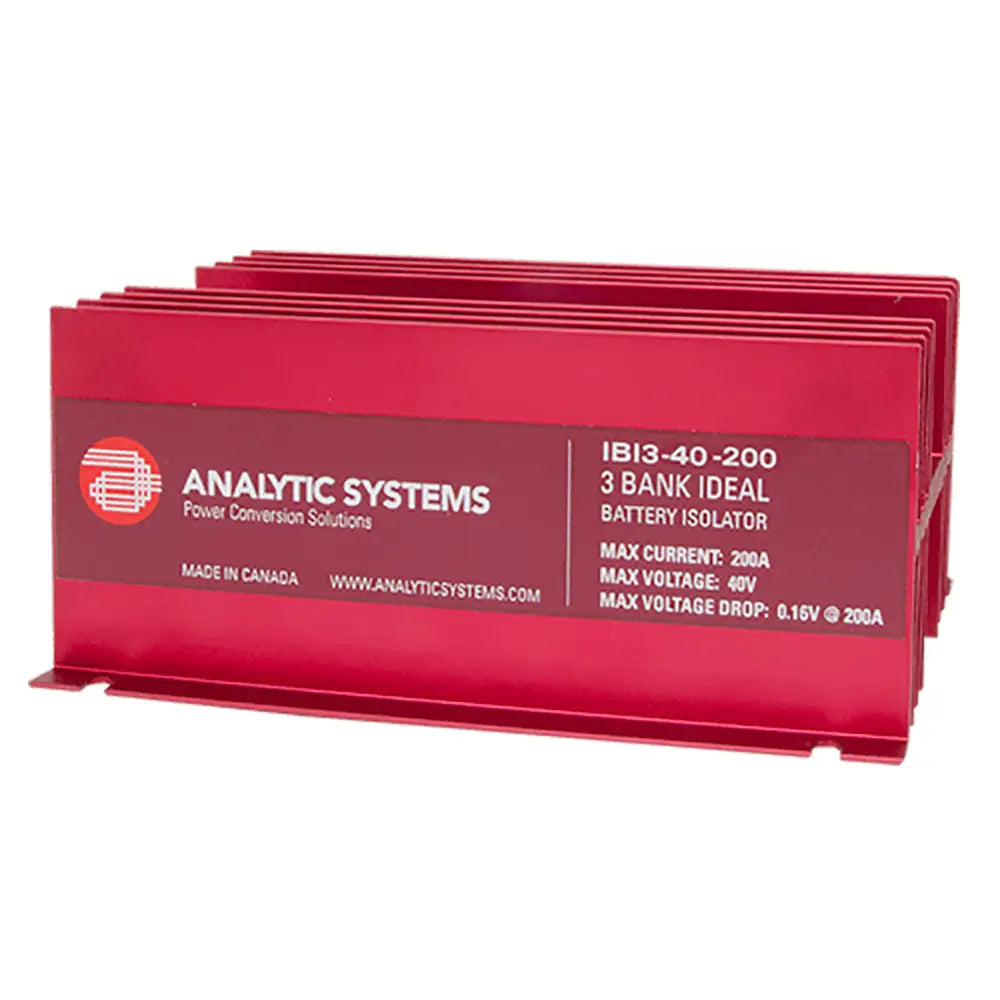

Analytic Systems 200A, 40V 3-Bank Ideal Battery Isolator [IBI3-40-200]

200A, 40V 3-Bank Ideal Battery Isolator

Features:

• Waterproof Expoxy Sealed Construction
• Easy Connection
• Most Efficient use of Available Alternator Output
• Maximize Battery Performance
• Three year parts and labour warranty

Analytic Systems introduces the IBI (Ideal Battery Isolator) for 1, 2 and 3 bank battery systems, allowing all the batteries to be fully charged from a single alternator while maintaining electrical
isolation between the battery banks or between a vehicle and trailer.

Ideal Diode technology uses MosFet Transistors and control circuitry to replace the diode used in a traditional battery isolator and reduces the voltage drop across the isolator to a mere 160 millivolts at 200 Amps of charging current and essentially zero volts at low current, so all the power of the alternator is applied to the batteries ensuring a full recharge every time.

While the Ideal Battery Isolator is designed to be used with an alternator, it can also be used to convert a single bank battery charger to a 2 or 3 bank charger or as a pure diode between a vehicle and trailer or other remote load.
