How to Upgrade Marine Engine Horsepower: Whipple Superchargers, ECU Reprogramming & CMI Performance Exhaust Manifolds
If you're running a Mercury Racing supercharged engine and want more power, better throttle response, and a sound that turns heads at every poker run, you're in the right place. At Bergen Performance Marine, we specialize in high-performance marine engine upgrades — from Whipple supercharger stage kits and custom ECU/PCM calibrations to CMI performance exhaust manifold installations. This guide breaks down each upgrade, what it does, and how they work together to transform your boat's performance.
Understanding the Performance Upgrade Pyramid
The most effective marine performance builds follow a logical progression. Each upgrade builds on the last, and the biggest gains come when all three systems work together:
- Exhaust — free up restriction and let the engine breathe out more efficiently
- Forced induction (supercharger) — force more air into the engine to burn more fuel and make more power
- ECU/PCM calibration — optimize fuel delivery, ignition timing, and boost control to maximize the gains from the hardware
Doing any one of these in isolation produces results. Doing all three together produces a completely transformed engine.
Whipple Supercharger Upgrades for Mercury Racing Engines
What Is a Whipple Supercharger?

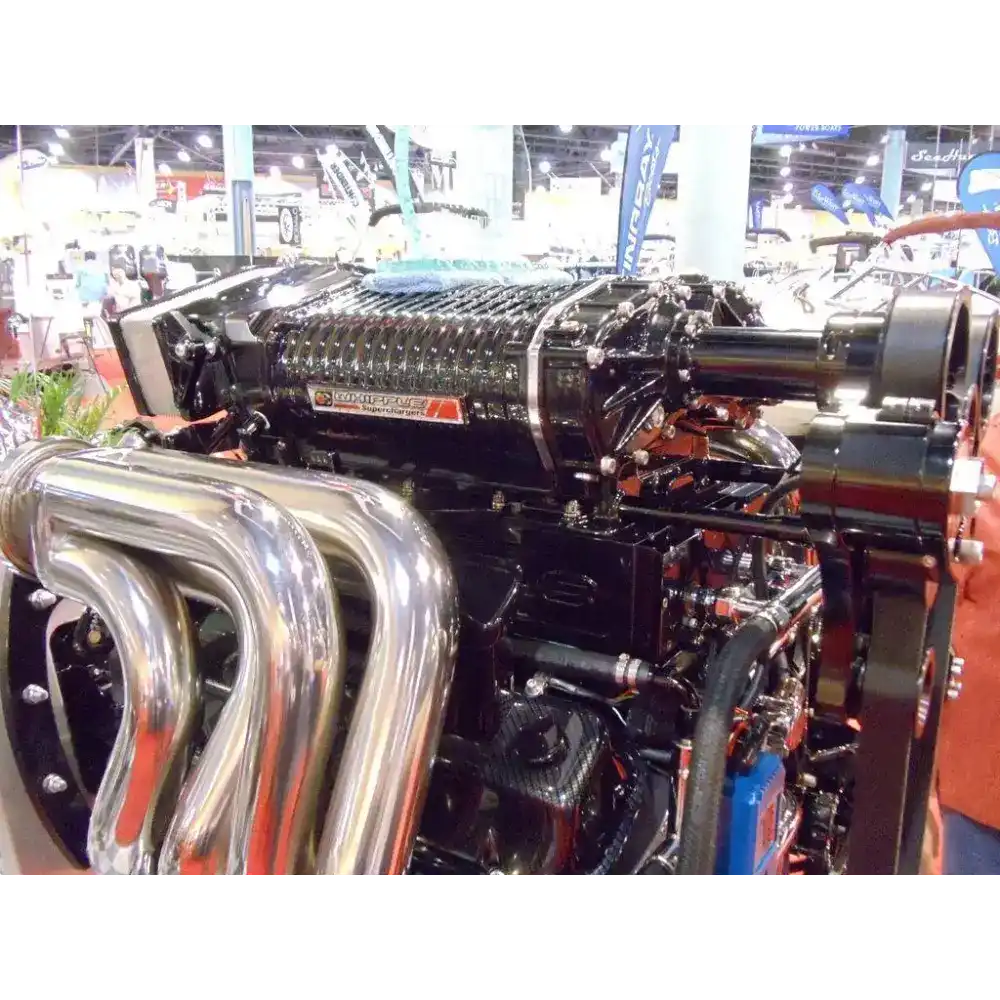

Whipple Industries manufactures twin-screw positive displacement superchargers — the most efficient type of forced induction available for marine applications. Unlike centrifugal superchargers that build boost gradually with RPM, twin-screw superchargers deliver full boost from idle, providing immediate throttle response and massive low-end torque. This translates directly to faster hole shots, stronger mid-range pull, and higher top-end speeds.
Whipple's marine supercharger systems are purpose-built for Mercury Racing's supercharged engine lineup — the 600 SCi, 662 SCI, and 700 SCi — and are engineered to handle the demands of high-performance marine use including saltwater exposure, high-RPM sustained operation, and the thermal challenges of an enclosed engine compartment.
Whipple Stage Upgrade Kits
Whipple offers staged upgrade kits that progressively increase supercharger displacement and boost pressure. Each stage delivers meaningful power gains over stock, and the stages can be combined for maximum output.
Mercury Racing 600 SCi Upgrades
The Whipple Stage 2 Mercury Racing 600 SCi System is the entry point for serious 600 SCi performance upgrades, delivering significantly increased boost and airflow over the stock supercharger. For maximum 600 SCi performance, the Whipple Stage 4 Mercury Racing 600 SCi Upgrade Kit pushes the 600 SCi to its limits with the largest available supercharger displacement and optimized boost delivery.
Mercury Racing 662 SCI Upgrades
The 662 SCI responds exceptionally well to Whipple upgrades. The Whipple Stage 2 Mercury Racing 662 SCI Upgrade Kit provides a strong power increase with excellent drivability, while the Whipple Stage 4 Mercury Racing 662 SCI Upgrade Kit extracts maximum performance from the 662's displacement advantage. The Stage 4 662 SCI build is one of the most popular performance packages we do at Bergen Performance Marine.
Mercury Racing 700 SCi Upgrades
For the ultimate in Mercury Racing supercharged performance, the 700 SCi with Whipple upgrades is in a class of its own. The Whipple Stage 2 Mercury Racing 700 SCi Upgrade delivers serious gains on an already powerful platform, while the Whipple Stage 4 Mercury Racing 700 SCi Upgrade Kit represents the pinnacle of production supercharged marine engine performance. These builds are for serious performance boaters who want to compete at the highest level.
Whipple Supercharger Components & Hardware
Supporting hardware is critical for a reliable, high-performance supercharger build. We carry the key Whipple components needed for a complete installation:
- Whipple 10-Rib Guarded Grooved Idler Pulley — 3.50" Diameter — precision-machined billet aluminum idler pulley for the supercharger drive belt system. Proper belt routing and tension are critical for reliable supercharger operation.
- Whipple 6061 T6 Billet Aluminum Support Stand Tensioner Plate — provides rigid support for the supercharger assembly and maintains proper belt tension under high-load conditions.
- Intake Gasket Set for Big Block Chevy Whipple Superchargers — proper sealing at the intake manifold is essential for maintaining boost pressure and preventing air leaks that rob power.
- Viton 3-Piece O-Ring Kit for Marine Whipple Big Block — Viton O-rings provide superior heat and chemical resistance compared to standard rubber, critical for the high-temperature environment of a supercharged marine engine.
- Gasket for Whipple 4" Intercooler and Whipple Intercooler O-Ring — intercooler sealing components that maintain the integrity of the charge cooling system.
- Whipple Intercooler Fitting O-Ring — seals the intercooler coolant fittings to prevent leaks in the charge cooling circuit.
ECU / PCM Calibration: Unlocking the Full Potential
Why ECU Reprogramming Is Essential
A supercharger upgrade without a matching ECU/PCM calibration is like installing a bigger carburetor without rejetting it — you're leaving power on the table and potentially running the engine in a dangerous condition. The factory ECU calibration is programmed for the stock supercharger configuration. When you increase boost pressure and airflow with a Whipple upgrade, the engine needs more fuel, different ignition timing, and revised boost control parameters to make power safely and reliably.
A proper custom calibration optimizes:
- Fuel delivery — injector pulse width and fuel pressure targets matched to the new airflow
- Ignition timing — advance curves optimized for the new boost levels and fuel octane
- Boost control — wastegate or bypass valve control for consistent boost across the RPM range
- Rev limiter and shift points — adjusted for the new power output
- Knock detection sensitivity — tuned to protect the engine while maximizing timing advance
Whipple PCM Calibrations
Whipple offers stage-specific PCM calibrations designed to work with their supercharger upgrade kits. These are not generic tunes — they're developed specifically for each Whipple stage on each Mercury Racing engine platform.
The Whipple Stage 1 305 MPI Upgrade Calibration is the starting point for 305 MPI engine upgrades, optimizing the factory ECU for Stage 1 supercharger modifications. The Whipple Stage 1 383/377/6.2 PCM Calibration Upgrade covers the larger displacement variants with a calibration tailored to their specific airflow and fuel requirements.
For engines being converted from a 305 MPI to a larger displacement, the 350/377/383 Conversion from 305 MPI PCM Calibration handles the complete recalibration required for a displacement swap, ensuring the ECU correctly manages the new engine's fuel and ignition requirements.
Custom Mercury Racing Calibrations
For the most demanding builds — particularly high-stage Whipple upgrades, custom fuel system modifications, or race applications — a custom calibration delivers results that off-the-shelf tunes can't match. The Whipple Mercury Racing Custom Calibrations service provides a bespoke tune developed specifically for your engine's exact configuration, fuel type, and performance goals.
For Mercury Marine's ECM/PCM 555 platform, the Custom Calibrations for Mercury Marine ECM PCM 555 provides expert reprogramming of Mercury's latest engine management system. The PCM 555 is used in Mercury's most current high-performance engines and requires specialized calibration expertise to unlock its full potential.
For the ultimate in Mercury Racing performance, the Mercury 575 SCi Custom Calibration for Whipple Superchargers is a purpose-built calibration for the 575 SCi platform with Whipple forced induction, developed to maximize power output while maintaining engine reliability.
CMI Performance Exhaust Manifolds
Why Exhaust Manifolds Matter for Marine Performance
The factory exhaust manifolds on most marine engines are designed for cost efficiency and emissions compliance — not maximum power. Cast iron manifolds restrict exhaust flow, retain heat, and add significant weight. CMI (Coastal Marine Industries) performance exhaust manifolds address all of these shortcomings with purpose-built, high-flow designs that free up significant horsepower and dramatically improve exhaust note.
What CMI Manifolds Deliver
CMI manufactures their marine exhaust manifolds from 316 stainless steel — the same grade used in marine hardware for maximum corrosion resistance. Their designs feature:
- Larger primary tube diameter — reduces exhaust backpressure and allows the engine to expel spent gases more efficiently
- Optimized collector design — improves exhaust scavenging, which helps pull fresh air/fuel mixture into the cylinder on the intake stroke
- Stainless steel construction — dramatically lighter than cast iron, reducing bow weight and improving handling
- Aggressive exhaust note — the sound that turns heads at every marina and poker run
On a supercharged engine, CMI manifolds work synergistically with the Whipple upgrade — the supercharger forces more air in, and the CMI manifolds let exhaust gases escape more freely, reducing pumping losses and increasing net power output.
Contact Bergen Performance Marine for CMI exhaust manifold availability and fitment for your specific engine. Our team will match the correct CMI manifold configuration to your engine platform and help you select the right elbow and riser combination for your hull.
Building the Complete Performance Package
Stage 2 Street/Performance Build
For boaters who want a significant power increase with excellent street manners and reliability:
- CMI performance exhaust manifolds
- Whipple Stage 2 upgrade kit for your engine platform
- Matching Whipple PCM calibration
- Supporting hardware: gaskets, O-rings, tensioner plate
Expected result: 15–25% power increase over stock, dramatically improved throttle response, and a sound that commands attention.
Stage 4 Full Race Build
For serious performance boaters and poker run competitors who want maximum output:
- CMI performance exhaust manifolds
- Whipple Stage 4 upgrade kit for your engine platform
- Custom Mercury Racing PCM calibration
- Full supporting hardware kit
- Upgraded fuel system components as required
Expected result: 30–50%+ power increase over stock depending on platform, with race-level performance that competes at the highest levels of offshore and poker run events.
Frequently Asked Questions
Will a Whipple upgrade void my Mercury Racing warranty?
Whipple supercharger upgrades are designed specifically for Mercury Racing engines and are installed by authorized performance shops. Warranty implications depend on your specific engine's warranty status and the nature of the modification. Contact us to discuss your specific situation before proceeding.
What octane fuel do I need after a Whipple upgrade?
Most Whipple stage upgrades require premium 91+ octane fuel at minimum. Higher stage builds and custom calibrations may be optimized for 93 octane or race fuel. Your PCM calibration will specify the minimum octane requirement for safe operation.
How long does a Whipple upgrade installation take?
A complete Whipple stage upgrade with PCM calibration typically takes 1–2 days at our shop, depending on the stage level and any supporting modifications required. We recommend scheduling a consultation so we can assess your specific engine and provide an accurate timeline.
Can I run a Whipple upgrade on a twin-engine boat?
Yes — in fact, twin-engine builds are very popular for performance center consoles and offshore boats. Both engines should be upgraded simultaneously and calibrated together for consistent performance and handling. We'll need calibrations for both ECUs to ensure matched power output.
What maintenance does a supercharged engine require?
Supercharged engines require more frequent oil changes (every 50–75 hours vs 100 hours for naturally aspirated), regular inspection of the supercharger belt and tensioner, intercooler coolant system maintenance, and spark plug inspection at reduced intervals. We'll provide a complete maintenance schedule with every performance build.
Ready to Build Your Performance Engine?
Bergen Performance Marine is your source for Whipple supercharger upgrades, custom ECU/PCM calibrations, and CMI performance exhaust manifold installations. Whether you're building a street/performance package or a full race build, our team has the expertise to do it right. Contact us to schedule a performance consultation — we'll assess your engine, discuss your goals, and build the package that gets you there.
