Choosing the Best Marine Battery and Charger Setup for Your Boat

A complete guide to choosing the best marine battery and charger setup, covering AGM vs lithium chemistry, battery sizing, ProMariner, Victron Skylla, Ionic, and Sentry chargers, plus switches, isolators, and wiring — with direct product links.
By Matthew Tani
9 min read

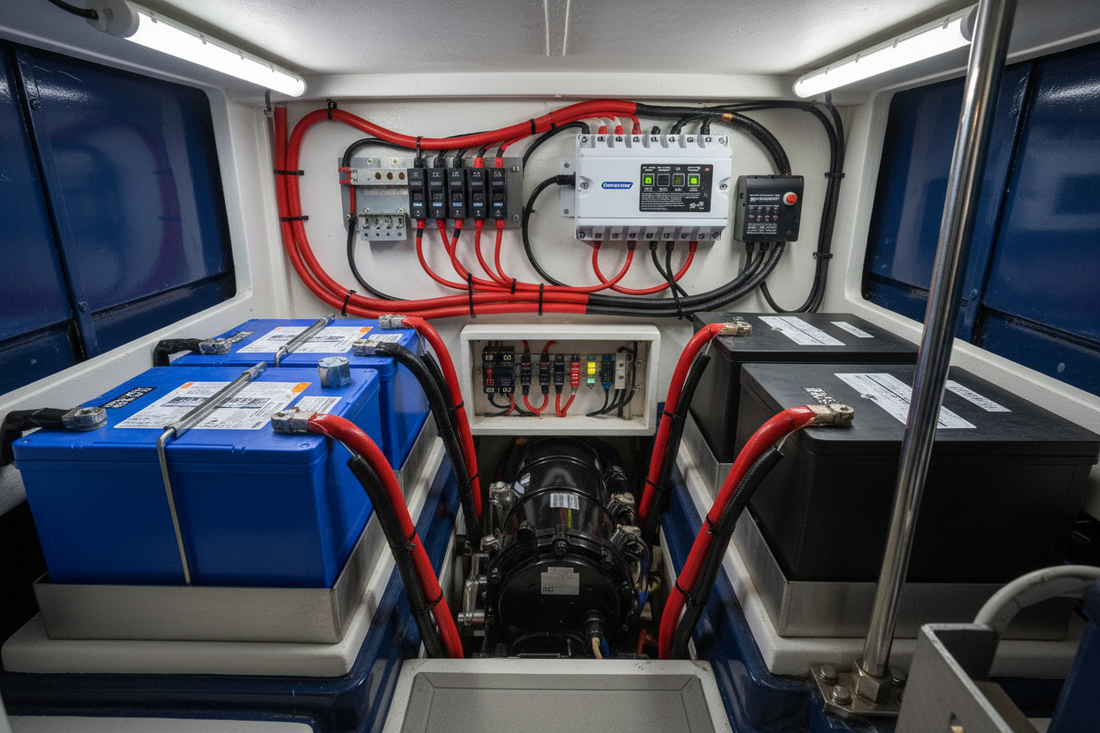

Professionally wired marine battery bank with AGM and lithium batteries and a multi-bank on-board charger installed in a boat engine compartment

Your boat's electrical system is the backbone of everything on board — from starting the engine and running electronics to powering livewells, trolling motors, and onboard entertainment. A weak or poorly designed battery and charging system leads to dead batteries, stranded boats, and damaged electronics. Getting it right means understanding battery types, sizing your bank correctly, choosing the right charger, and wiring everything safely. At Bergen Performance Marine, we carry everything you need to build a reliable, high-performance marine electrical system from the ground up.

Marine Battery Types: AGM, Lithium, and Flooded Lead-Acid

The first decision in any marine battery setup is battery chemistry. Each type has distinct advantages and trade-offs.

Flooded Lead-Acid (FLA)

The traditional marine battery technology. Flooded lead-acid batteries are the most affordable option upfront and widely available. However, they require regular maintenance (checking and topping off electrolyte levels), must be mounted upright, off-gas hydrogen during charging (requiring ventilation), and have the shortest cycle life of any battery type. For most modern boats, FLA batteries have been largely replaced by AGM or lithium.

AGM (Absorbed Glass Mat)

AGM batteries are the most popular choice for recreational boats today. They're sealed (no maintenance, no off-gassing), can be mounted in any orientation, handle vibration well, and offer significantly better cycle life than flooded batteries. AGM batteries accept a faster charge rate than flooded batteries and can be deeply discharged more times before capacity degrades. They cost more upfront than flooded batteries but less than lithium, making them the best value for most boaters.

Best for: Most recreational boats, fishing boats, cruisers, and any application where reliability and low maintenance are priorities.

Lithium (LiFePO4)

Lithium iron phosphate (LiFePO4) batteries represent the premium tier of marine battery technology. They offer dramatically better performance across every metric that matters:

  • Weight: 50–60% lighter than equivalent AGM batteries — critical for performance boats
  • Cycle life: 2,000–5,000+ cycles vs 300–500 for AGM
  • Usable capacity: 95%+ of rated capacity vs 50% for AGM (you can't safely discharge AGM below 50%)
  • Charge speed: Accepts charge much faster than AGM
  • Consistent voltage: Maintains near-full voltage throughout the discharge cycle, keeping electronics performing optimally

The trade-off is upfront cost — lithium batteries cost 2–3x more than AGM. However, when you factor in the longer lifespan and greater usable capacity, the total cost of ownership often favors lithium over a 5–10 year period.

Best for: Performance boats where weight matters, heavy electrical users (large trolling motors, high-draw electronics), liveaboards, and boaters who want the best long-term value.

Battery Applications: Starting vs. House vs. Trolling Motor

Most boats need more than one battery, and different applications require different battery characteristics.

Starting Batteries

Starting batteries are designed to deliver a massive burst of current (cranking amps) for a few seconds to start the engine, then be immediately recharged by the alternator. They're optimized for high current delivery, not deep cycling. Never use a starting battery as a house or trolling motor battery — deep discharging a starting battery will destroy it quickly.

Deep Cycle / House Batteries

Deep cycle batteries are designed to be discharged slowly over a long period and recharged repeatedly. They power electronics, lights, pumps, refrigeration, and other onboard loads when the engine isn't running. AGM and lithium deep cycle batteries are the right choice for house banks.

Dual-Purpose Batteries

Dual-purpose batteries attempt to balance starting and deep cycle capability. They're a reasonable compromise for smaller boats with a single battery, but dedicated starting and house batteries are always the better choice when space and budget allow.

Trolling Motor Batteries

Trolling motors draw significant sustained current and require true deep cycle batteries. Lithium batteries are increasingly popular for trolling motor applications because their lighter weight reduces bow weight and their consistent voltage keeps the trolling motor running at full power throughout the discharge cycle.

Marine Battery Chargers

A quality on-board charger is as important as the batteries themselves. The right charger maintains your batteries in peak condition, extends their lifespan, and ensures you're always ready to go. Here's what we carry:

Ionic Lithium Battery Chargers

Ionic makes purpose-built chargers for lithium LiFePO4 batteries — critical because lithium batteries require a specific charging profile that differs from AGM and flooded batteries. Using the wrong charger on a lithium battery can damage it or trigger the battery management system (BMS) to shut down.

ProMariner ProTournament Elite Series

ProMariner's ProTournament Elite Series is one of the most trusted on-board charger lines in the fishing and recreational boating market. These chargers feature ProMariner's Distributed-On-Demand technology, which automatically allocates charging power where it's needed most across multiple banks.

Sentry Marine Battery Chargers

Sentry chargers are high-output professional-grade units designed for demanding marine applications. Their SFR series features automatic 115/230V input switching and multi-bank output.

Victron Skylla-IP65 Chargers

Victron Energy is the gold standard in professional marine and off-grid electrical systems. The Skylla-IP65 series features IP65 waterproof rating, making it suitable for installation in exposed locations, and supports Victron's VE.Bus network for integration with Victron battery monitors and inverters.

  • Victron Skylla-IP65 12/70 1+1 — 70A output for a primary 12V bank plus a 4A output for a second bank. The 1+1 configuration is ideal for a large house bank with a separate starting battery.
  • Victron Skylla-IP65 12/70 3-Bank — 70A distributed across 3 independent banks. The premium choice for serious cruisers and liveaboards with large battery systems.

Minn Kota On-Board Charger

The Minn Kota MK-315D 3-Bank 5A On-Board Charger is a reliable, affordable entry-level on-board charger for boats with up to three batteries. At 5A per bank, it's best suited for maintenance charging and overnight recovery of moderately discharged batteries. A solid choice for smaller boats and weekend boaters.

Attwood Marine & Automotive Battery Charger

The Attwood Marine & Automotive Battery Charger is a versatile portable charger that works for both marine and automotive applications. It's a practical choice for occasional use, trailered boats, and as a backup charger.

Battery Management: Switches, Isolators & Distribution

A proper battery system needs more than just batteries and a charger — you need the right switching and distribution hardware to manage multiple banks safely.

Battery Switches

A master battery switch is required on all gasoline-powered boats and is a critical safety component. It allows you to disconnect the battery from the electrical system to prevent parasitic drain and in emergencies.

Battery Isolators & Distribution

Battery isolators allow your alternator to charge multiple battery banks simultaneously while preventing them from discharging into each other. The ARCO Marine 120A Battery Isolator — 1 Alternator, 3 Battery handles up to 120A of alternator output and distributes it across three independent battery banks — ideal for boats with starting, house, and trolling motor batteries.

For organized battery distribution, the BEP Horizontal Battery Distribution Cluster and BEP Square Battery Distribution Cluster provide a clean, organized connection point for dual battery bank systems on single-engine boats, rated to 140A.

Battery Cables

Marine battery cables must be tinned copper — standard automotive cables corrode rapidly in the marine environment. We carry Pacer marine-grade battery cable in multiple gauges and lengths:

Battery Monitoring & Safety

Recommended Battery Setups by Boat Type

Small Fishing Boat / Center Console (under 22')

  • 1 AGM starting battery
  • 1 AGM or lithium deep cycle for electronics and accessories
  • ProMariner ProTournament 240 Elite 2-Bank charger
  • Hella Marine master battery switch

Mid-Size Center Console / Walkaround (22'–30')

  • 1 AGM starting battery
  • 1–2 AGM or lithium deep cycle house batteries
  • 1 lithium trolling motor battery (if applicable)
  • ProMariner ProTournament 360 Elite 3-Bank or Ionic 4-Bank charger
  • ARCO 120A battery isolator
  • BEP battery distribution cluster

Large Offshore / Cruiser (30'+)

  • 1–2 AGM starting batteries
  • Large AGM or lithium house bank (200–400Ah+)
  • Victron Skylla-IP65 12/70 charger
  • Sentry high-output charger for fast dock charging
  • Full Victron monitoring system

Frequently Asked Questions

How long should a marine battery last?

A quality AGM battery properly maintained and not deeply discharged should last 3–5 years. Lithium batteries last 8–15+ years with proper care. Flooded lead-acid batteries typically last 2–3 years. The biggest factors in battery life are depth of discharge, charging quality, and storage practices.

Can I mix AGM and lithium batteries in the same system?

Yes, but they must be on separate charging circuits with chemistry-appropriate chargers. Never charge a lithium battery with an AGM charger profile — it can damage the battery or trigger the BMS. The Ionic multi-chemistry chargers are designed specifically for mixed systems.

How do I know what size battery bank I need?

Add up the amp draw of all your electrical loads and estimate how many hours you run them between charges. Multiply amps x hours to get amp-hours (Ah) of consumption. For AGM, size your bank at 2x your consumption (to avoid going below 50% discharge). For lithium, size at 1.1–1.2x your consumption.

Should I leave my charger connected all season?

Yes — a quality smart charger like the ProMariner, Sentry, or Victron units will automatically switch to a float/maintenance mode once the battery is fully charged, keeping it topped off without overcharging. This is the best way to maintain battery health during the season and in storage.

Build Your Marine Electrical System with Bergen Performance Marine

Whether you're upgrading a single battery or designing a complete multi-bank electrical system from scratch, Bergen Performance Marine has the products and expertise to get it right. Browse our full selection of marine batteries, chargers, switches, and wiring online, or contact us to schedule a consultation with our electronics team. We'll design and install a system that keeps you on the water reliably, season after season.
