Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215]
Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215]
Low stock! Only 2 left
Regular price
$131.16
Sale price
$131.16
Regular price
$177.45
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Want next day delivery? Be quick!
Question about this product?
We're happy to help.
Up to 26% off

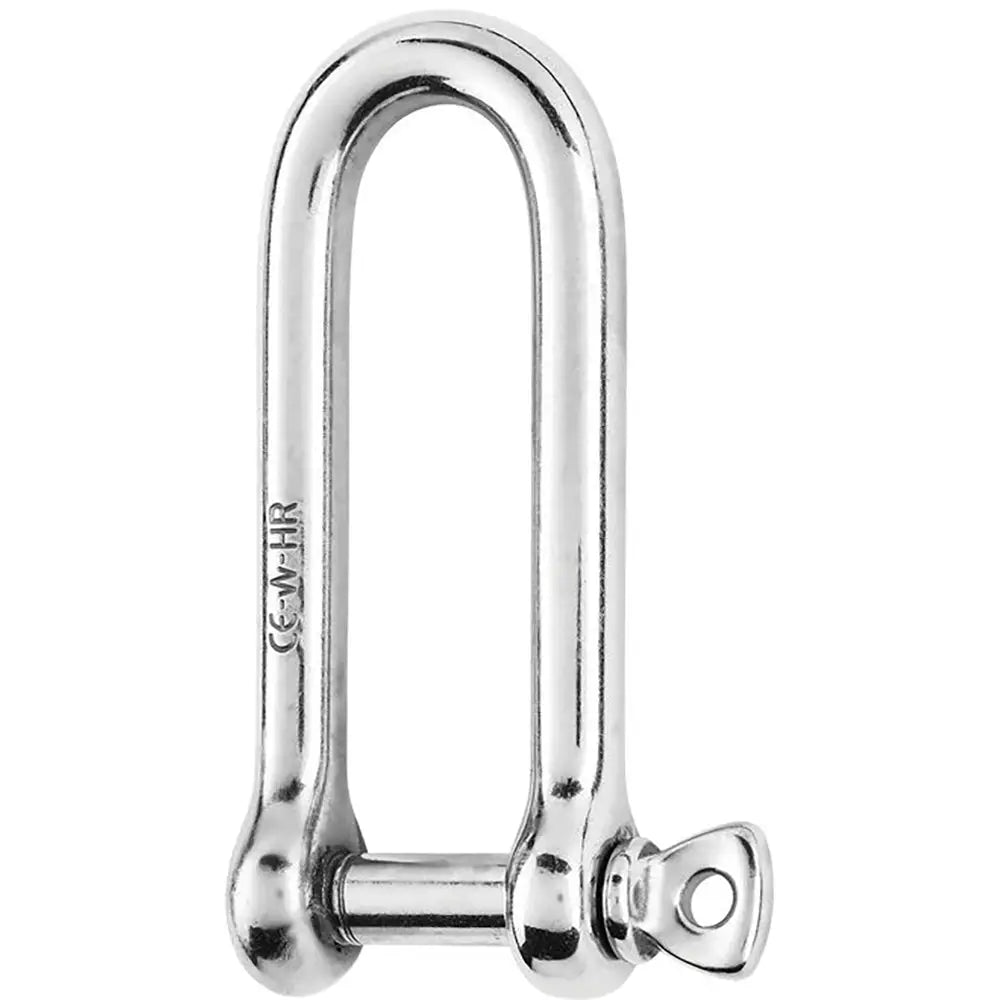

HR Long D Shackle - 10mm Diameter - 25/64"
Features:
- Forged long shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.362 / (g) 164

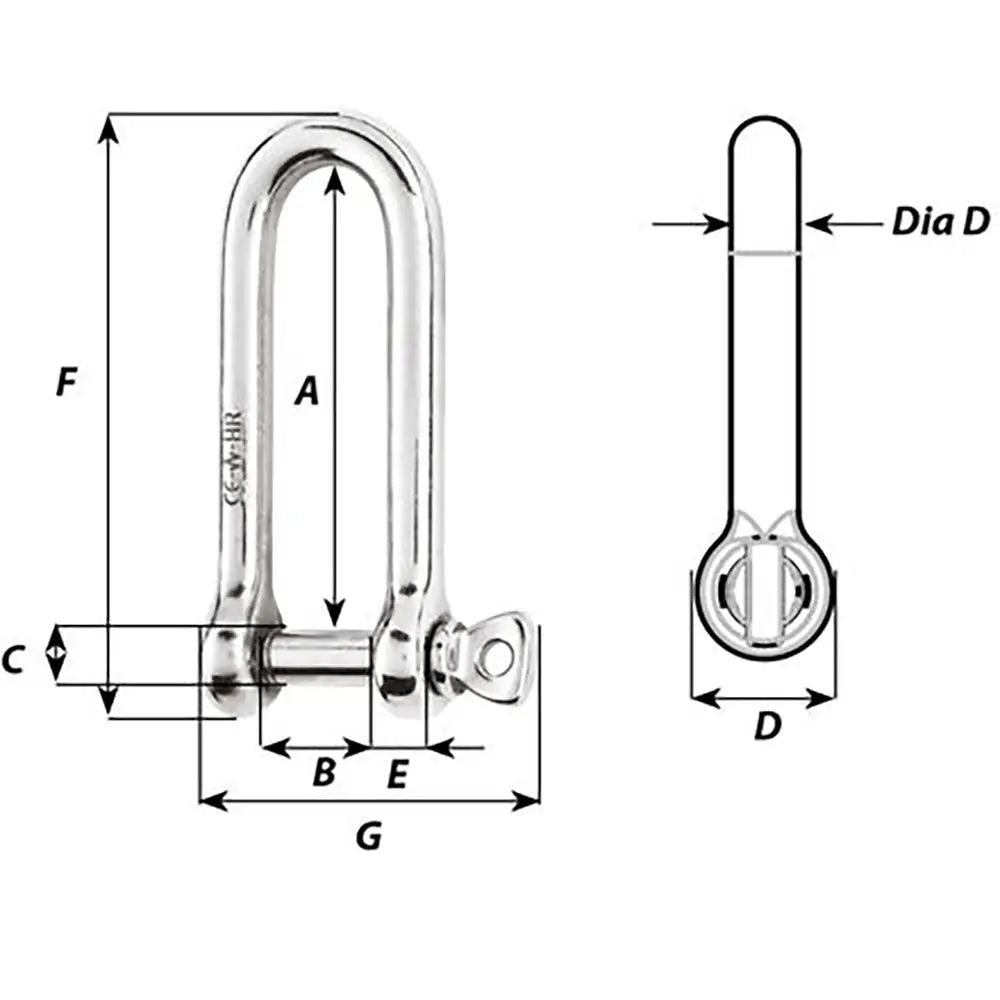

Dimensions:
- A: (inch) 3 5/64" / (mm) 78
- B: (inch) 25/32" / (mm) 20
- D diameter: (inch) 25/64" / (mm) 10
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Quick Guide (pdf)
