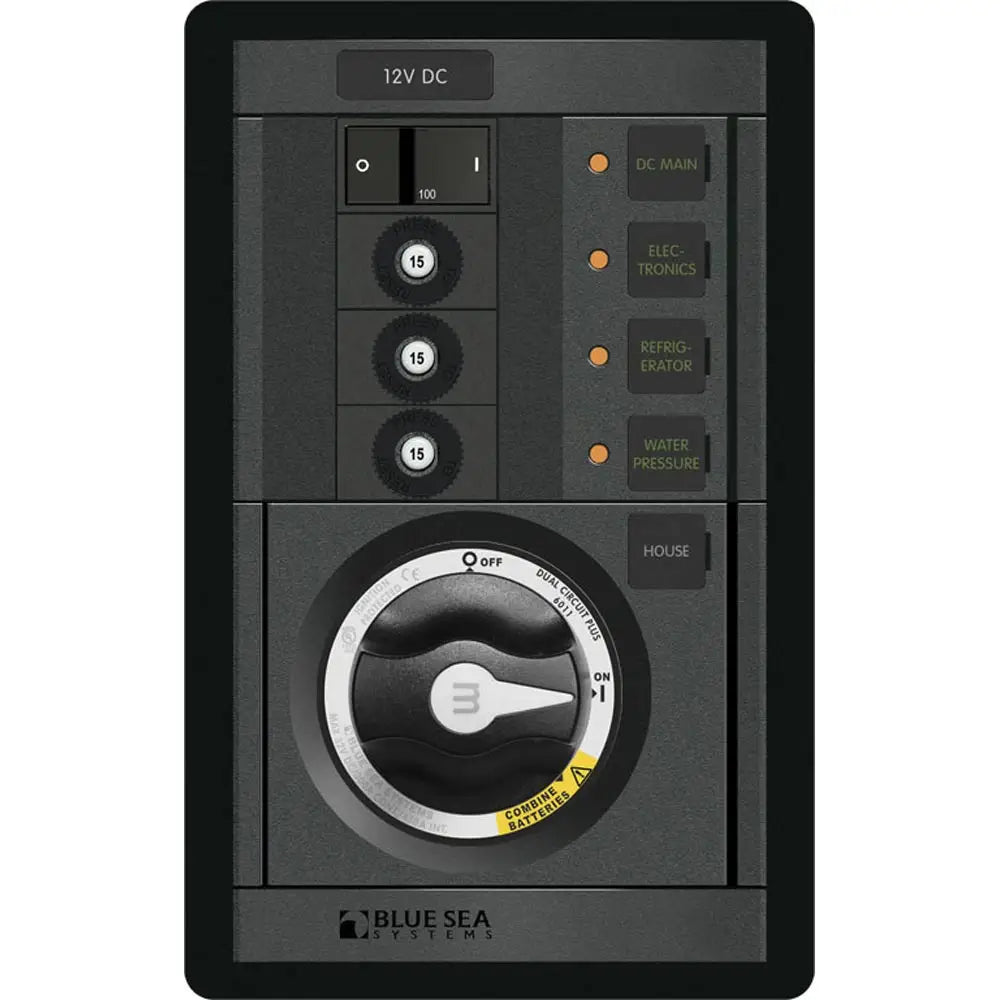

Blue Sea 1408 M-Series Dual Circuit Plus, Main + 3 Positions CLB Vertical [1408]

M-Series Dual Circuit Plus™, Main + 3 Positions CLB Vertical

Features:

• Push Button Reset-Only Branch Circuit Breakers provide economical high-density circuit protection when switching is provided elsewhere - ideal for 24-hour circuit protection

• Provides DC Main circuit protection

• Backlit label positions

• "ON" indicating LEDs installed in all circuit positions

• 24-hour circuits

• Snap on end-plates conceal mounting screws

• Labels can be removed and replaced from the front of the panel

• Incorporates M-Series Dual Circuit Plus™ Battery Switch 6011200

• Includes 4218-Square Format Label Set

• Positions:3

• Nominal Voltage:12V DC

• Height:7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth:3.50" (88.9mm)

• Weight:2.42lb (1.1kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • AC/DC: DC
  • Box Dimensions: 6"H x 7"W x 12"L WT: 2.3 lbs
  • UPC: 632085014087

  Quick Guide (pdf)
  Owner's Manual (pdf)
