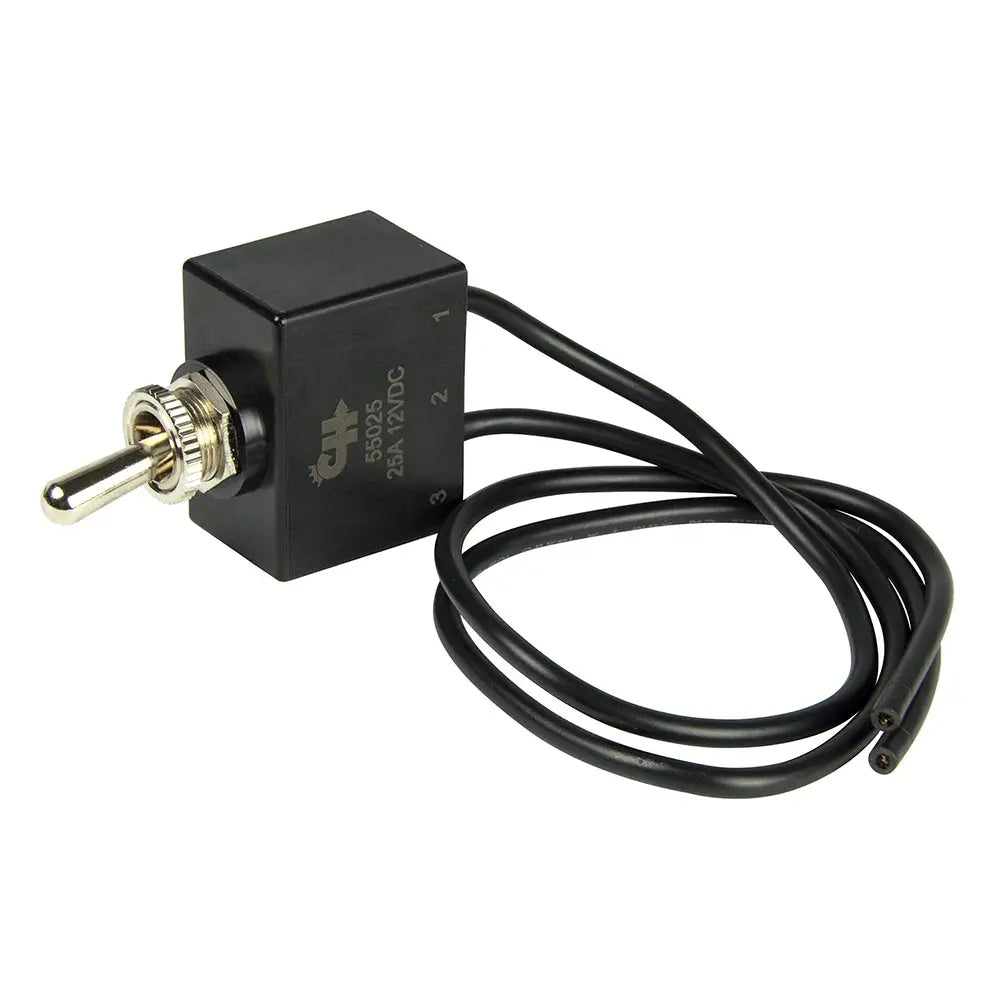

BEP SPST Sealed Toggle Switch - OFF/ON [1002010]

SPST Sealed Toggle Switch - OFF/ON

Single pole, single throw toggle switch turns one circuit on and off. Common applications include use for any single circuit requiring an on-off style switch. Completely sealed switches built to stand up to the most extreme conditions. Engineered to IP67 specifications utilizing a double o-ring within a bushing at the toggle and a full epoxy seal at the back.

Features:

• Nominal voltage is 12V/24V DC
• Rated for 25A at 12V DC, 15A at 24V DC
• 10" 14 AWG wire lead terminals
• Mounting stem 15/32" fits panels up to 1/8" thick
• Same as Cole Hersee part number 55025

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Action: On/Off
• Color: Chrome
• Throw/Pole: SPST
• Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs
• UPC: 870216046693
