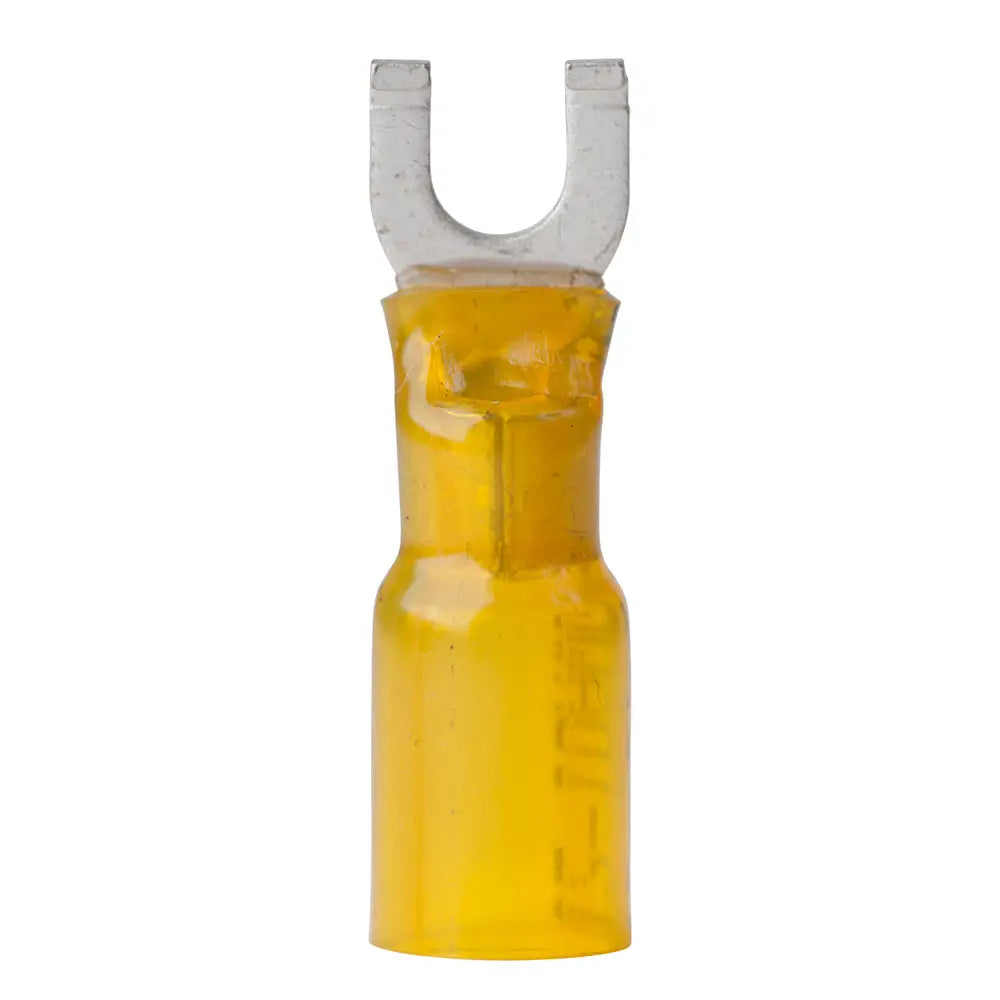

Ancor 12-10 Gauge - #8 Heat Shrink Spade Terminals - 100 Pack [315299]

12-10 Gauge - #8 Heat Shrink Spade Terminals - 100 Pack

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.

• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.

• Nylon insulator, preferred by experts.

• UL Listed and CSA Recognized

• Highest shrink ratio - shrinks to 1/3 original size.

• Shrinks at 257 deg. F/125 deg. C.

• Operating temperature range 40 deg. C to 110 deg. C.

• Tinned for corrosion resistance.

• Pure copper for maximum current flow.

• Brazed seam for maximum strength.

• Wire Range: 12-10

• mm: 3-5

• Screw Size: 4mm

• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  Specifications:

  • Gauge: 12-10 AWG
  • Type: Spade connectors
  • Package Qty: 100
  • Heat Shrink: Yes
  • Box Dimensions: 1"H x 3"W x 8"L WT: 0.5 lbs
  • UPC: 091887318524

  Quick Guide (pdf)
